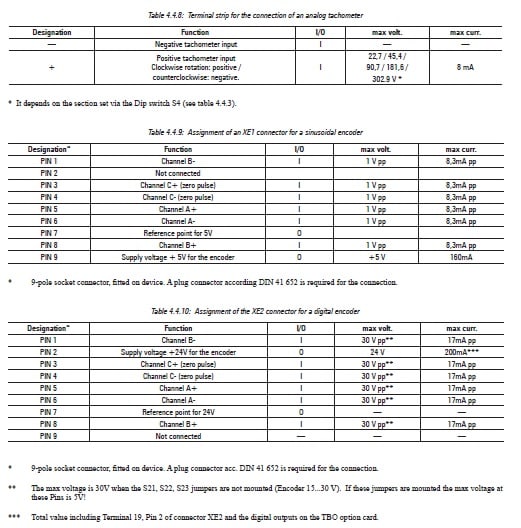

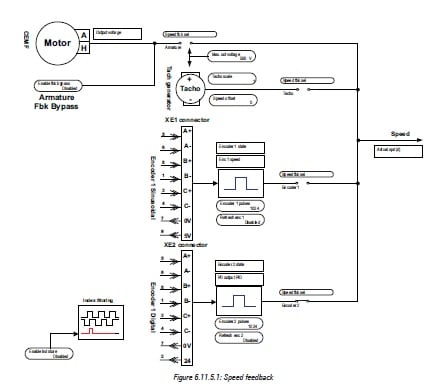

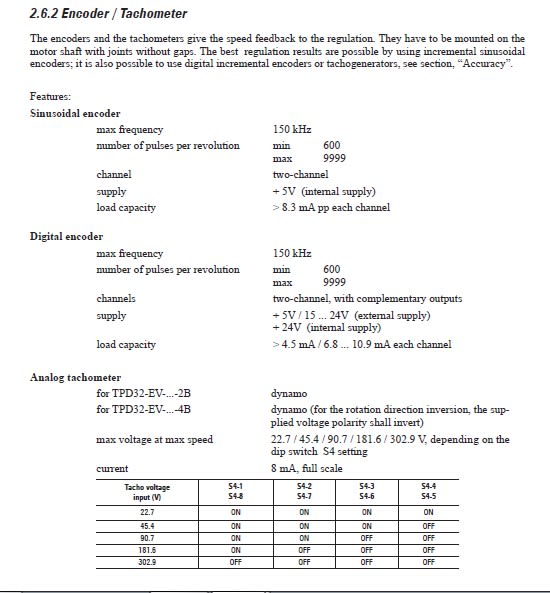

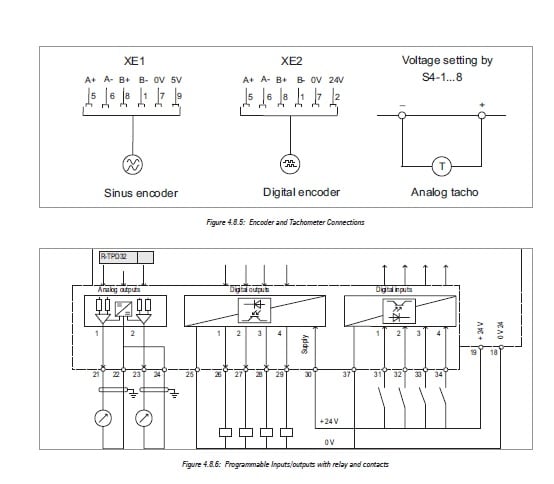

×
INTELLIGENT WORK FORUMS
FOR ENGINEERING PROFESSIONALS

Contact US

Log In

Come Join Us!

Are you an
Engineering professional?
Join Eng-Tips Forums!
  • Talk With Other Members
  • Be Notified Of Responses
    To Your Posts
  • Keyword Search
  • One-Click Access To Your
    Favorite Forums
  • Automated Signatures
    On Your Posts
  • Best Of All, It's Free!

*Eng-Tips's functionality depends on members receiving e-mail. By joining you are opting in to receive e-mail.

Posting Guidelines

Promoting, selling, recruiting, coursework and thesis posting is forbidden.

Students Click Here

Speed feedback terminals

Speed feedback terminals

Speed feedback terminals

(OP)
Does anyone knows what are the terminals A B C (between - and +) for?
Picture is of a DC Drive. - and + are used to connect a tachogenerator coupled to the motor.
Conector ENC 1 is for sinusoidal enconder
Conector ENC 2 is for digital enconder
I have looked in the manual but could not find it

thanks



RE: Speed feedback terminals

Just a WAG;
Will the drive accept a selsyn input as an option or would a selsyn be the sinusoidal input?

--------------------
Ohm's law
Not just a good idea;
It's the LAW!

RE: Speed feedback terminals

(OP)
Apparently not. Here are some images from the manual. It never says anything about those 3 terminals







RE: Speed feedback terminals

It's kind of listed in the 2nd page of your image except they've added polarity.

Red Flag This Post

Please let us know here why this post is inappropriate. Reasons such as off-topic, duplicates, flames, illegal, vulgar, or students posting their homework.

Red Flag Submitted

Thank you for helping keep Eng-Tips Forums free from inappropriate posts.
The Eng-Tips staff will check this out and take appropriate action.

Reply To This Thread

Posting in the Eng-Tips forums is a member-only feature.

Click Here to join Eng-Tips and talk with other members! Already a Member? Login



News


Close Box

Join Eng-Tips® Today!

Join your peers on the Internet's largest technical engineering professional community.
It's easy to join and it's free.

Here's Why Members Love Eng-Tips Forums:

Register now while it's still free!

Already a member? Close this window and log in.

Join Us             Close
