Strand7 Bending Moment Sign Convention

Strand7 Bending Moment Sign Convention

Strand7 Bending Moment Sign Convention

(OP)
Hi, what direction (clockwise or counter-clockwise) are the positive and negative bending moment values found in the results tables. Results are based on the global axes.

RE: Strand7 Bending Moment Sign Convention

I’ve never thought about the sign.

I always just look at the bending diagram, which is drawn on the tension side.

RE: Strand7 Bending Moment Sign Convention

(OP)
Its just that I'm reading reactions from nodes on plates. so it's a bit tricky to determine what is actually happening.

RE: Strand7 Bending Moment Sign Convention

I'm not familiar with the software. If you run a simple structure, such as a beam fixed both ends, it should be possible to figure out the sign convention used.

BA

RE: Strand7 Bending Moment Sign Convention

I use the international convention... an orthogonal right hand coordinate system with the (force direction signs) X (sign values for the face the forces are acting on).

Rather than think climate change and the corona virus as science, think of it as the wrath of God. Do you feel any better?

-Dik

RE: Strand7 Bending Moment Sign Convention

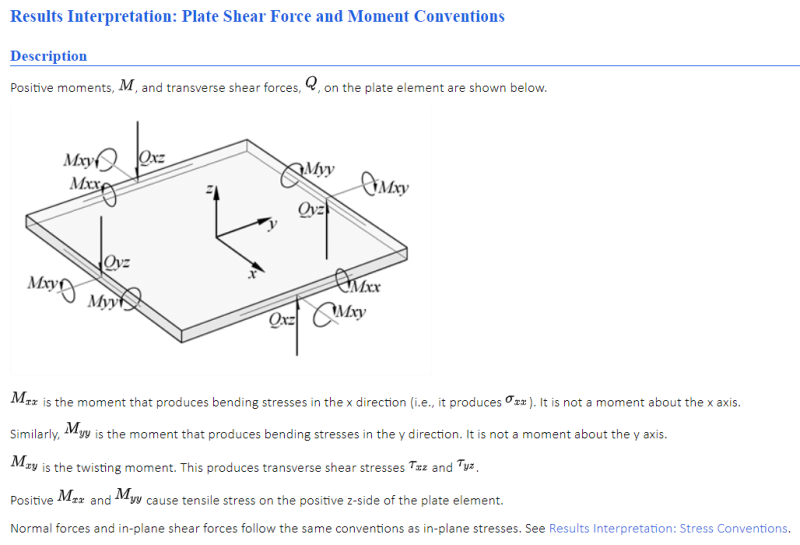

You aren't the only one who finds these things confusing. The diagram below is helpful. It is from the Rel 3 help, but the same applies to previous versions:



But rather than worrying about clockwise or anti-clockwise, I recommend displaying the plates as solids, then displaying surface stress values, so you can see which face is in tension.

Doug Jenkins
Interactive Design Services
http://newtonexcelbach.wordpress.com/
