Measure function, ho to get delta XY result.

Measure function, ho to get delta XY result.

Measure function, ho to get delta XY result.

(OP)
Hello,
In the Measure dialog in v 12.0.2, what is the best was to obtain a delta XY measurement? I have tried using a Vector object but that does not seem to be the correct method. I have looked in the preferences but have not seen anything pertaining to delta XY.

I am sure I am missing something; this was basic, default output in the previous measure dialog version.

Any ideas?

NX 12.0.2
EVP's

RE: Measure function, ho to get delta XY result.

Expand the "settings" section of the measure dialog then go into "preferences"; in the preferences dialog, turn on the "display x, y, z delta values" option.

www.nxjournaling.com

RE: Measure function, ho to get delta XY result.

(OP)
@cowski
Yes, they are checked, thank you. The results display is still showing delta values for X, Y and Z individually but not delta XY.

@TaylorAnderson
I wonder if development left it out intentionally.

NX 12.0.2
EVP's

RE: Measure function, ho to get delta XY result.

Jerry J.
UGV5-NX11

RE: Measure function, ho to get delta XY result.

(OP)
@jerry1423
That is the output I am looking for. Still looking for how to that in v12, and later.

NX 12.0.2
EVP's

RE: Measure function, ho to get delta XY result.

If you change the reference csys option to WCS in the settings section, it will report the 2D distances (XY, YZ, and XZ) w.r.t. the WCS. I've not found an option (in NX 12) to get the same info for the absolute csys (like in older versions).

www.nxjournaling.com

RE: Measure function, ho to get delta XY result.

(OP)
I have the Ref CSYS set to WCS but it still returns just delta
values in single directions only, X, Y or Z but not XY.

Update:

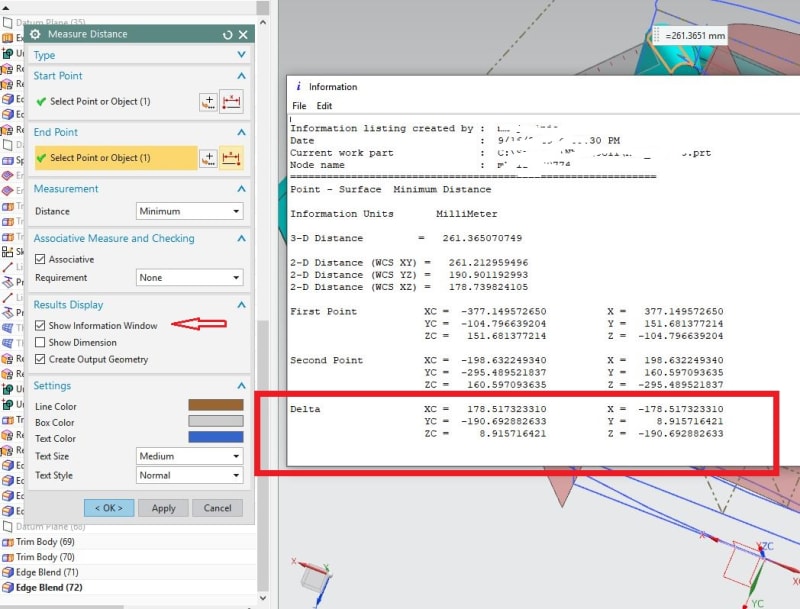

I just noticed that XY, YZ and XZ values are only shown in the Information Window
and it will not display until the Measure dialog is closed.

Well that could not be more inconvenient!!!

ER on the way...

NX 12.0.2
EVP's

RE: Measure function, ho to get delta XY result.

I'm running 12.0.2.9; if I hit "apply", the information window appears and the measure dialog stays open. However, the objects are deselected, so the overall effect is essentially the same.

www.nxjournaling.com

RE: Measure function, ho to get delta XY result.

(OP)
Got it; thank you!

I am so used to using Chain of Objects for Measurement Method that I never use Apply for measuring anymore.
*facepalm

NX 12.0.2
EVP's

Red Flag This Post

Please let us know here why this post is inappropriate. Reasons such as off-topic, duplicates, flames, illegal, vulgar, or students posting their homework.

Red Flag Submitted

Thank you for helping keep Eng-Tips Forums free from inappropriate posts.
The Eng-Tips staff will check this out and take appropriate action.

Reply To This Thread

Posting in the Eng-Tips forums is a member-only feature.

Click Here to join Eng-Tips and talk with other members! Already a Member? Login
