Model in ISO Tolerance Standard but drawing dimensions nominal w/ symetric tolerance

  • Thread starter Thread starter luthster
  • Start date Start date
L

luthster

Guest
Is it possible in WF3.0 to show drawing dimensions at nominal with symetric tolerances when the model is using the ISO tolerance standard?

Our manufacturing people are used to seeing all drawing dimension displayed as nominal with a symetric +/- tolerance. We are now designing metric parts using the ISO tolerance standards for bores and shafts dimensions. Is it possible to display these dimensions on the drawings as the nominal dimension with symetric +/- tolerance?


Can I model the part this way
View attachment 5975

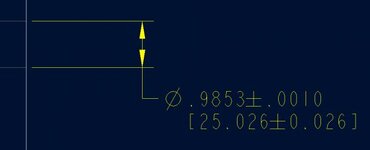

but show the drawing dimensioned this way?
View attachment 5976
