Help with balloon stacking?

• Jan 9, 2023

• #2

jerry1423

Mechanical

Aug 19, 2005

3,428

Below is something that may help you.

https://community.sw.siemens.com/s/...AA/attaching-manual-balloons-stacked-balloons

Jerry J.
UGV5-NX1899



Upvote 0 Downvote

• Jan 10, 2023

• #3

cowski

Mechanical

Apr 23, 2000

8,218

https://docs.sw.siemens.com/en-US/doc/209349590/PL20190529153447339.drafting/id919309

Do you get any sort of error message?

Also, this knowledge base article might be relevant:

https://support.sw.siemens.com/en-US/product/209349590/knowledge-base/PL8111063

It sounds like some stack options are incompatible with certain types of associative origins.



Upvote 0 Downvote

• Jan 10, 2023

• Thread starter
• #4

RailSnail

Industrial

Jan 8, 2020

7

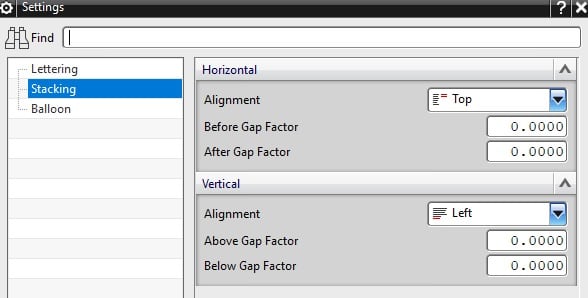

I do not get any error. The second balloon just floats over the first. It wont do a snap/drag horizontal align either. Stack in Preferences is enabled. I do not get a STACK HORIZONTALLY or STACK VERTICALLY either when I select a group of them and right click (per cowski's link.) It is NX12. Snap of settings below- hope it comes thru.



Upvote 0 Downvote

• Jan 10, 2023

• #5

cowski

Mechanical

Apr 23, 2000

8,218

Have you tried alignment options other than "top left"? While on the GTAC site, I ran across an article that indicated the "top" alignment didn't work well; but that was for an older version (NX 7.5, I think). Still worth a try - sometimes bugs get carried over for years...

www.nxjournaling.com



Upvote 0 Downvote

• Jan 10, 2023

• Thread starter
• #6

RailSnail

Industrial

Jan 8, 2020

7

This is the strangest thing everyone. I messed with this yesterday afternoon and this morning. Rechecked settings again. They still wouldn't work. I no more than turned to talk to a coworker and mentioned they wouldn't stack. Went to show him and they stacked. I am still in the same NX session as yesterday. Truly baffling. Thanks for your replies.



Upvote 0 Downvote

• Jan 10, 2023

• #7

cowski

Mechanical

Apr 23, 2000

8,218

I've found that when 2 or more people look at a computer problem, it tends to scare the gremlin away.

Glad to hear that you are back on track.

www.nxjournaling.com



Upvote 0 Downvote
