Oscilloscope Connections.

thread1630-492599

Oscilloscope Connections.

Oscilloscope Connections.

(OP)
Got a new oscilloscope to play with. 126 page user manual but with no advice as to how to properly connect the test probes.

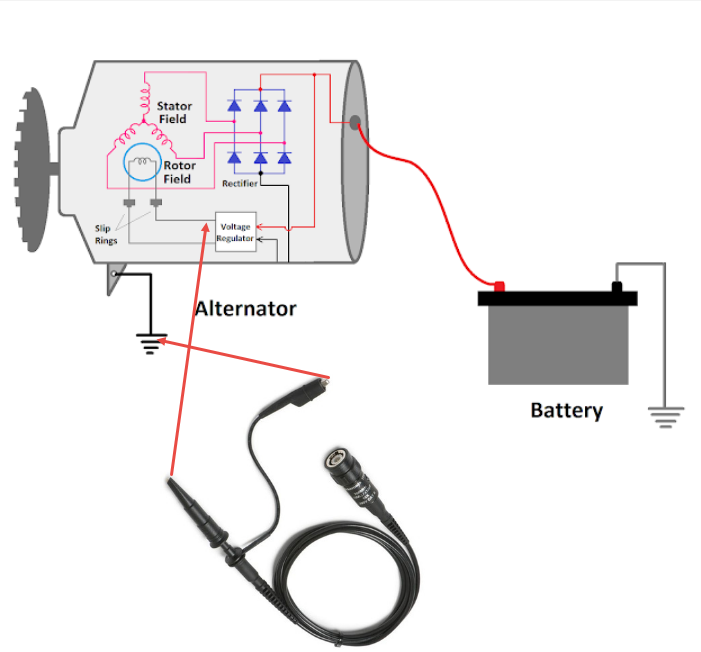

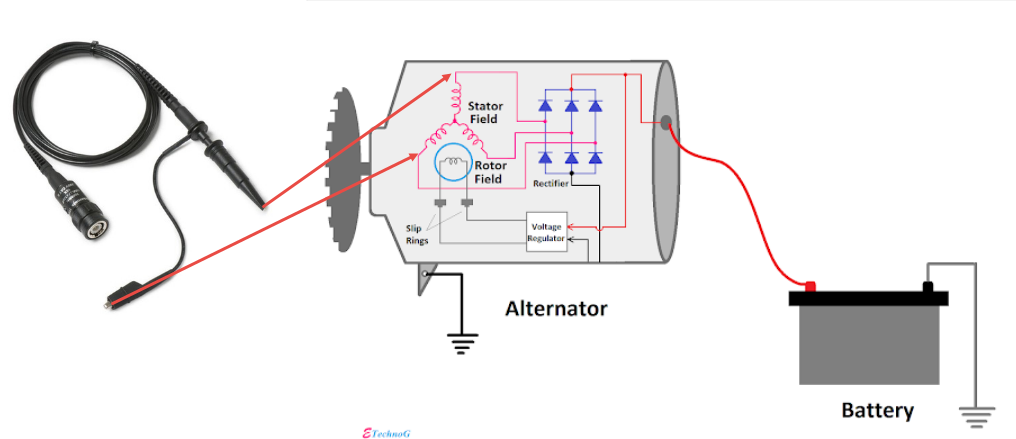

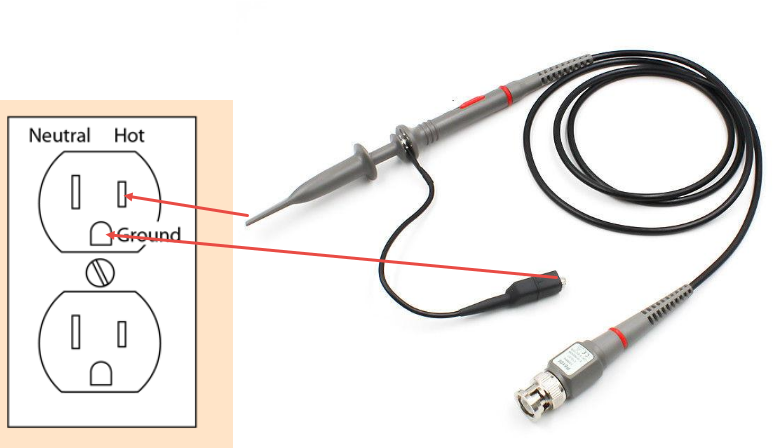

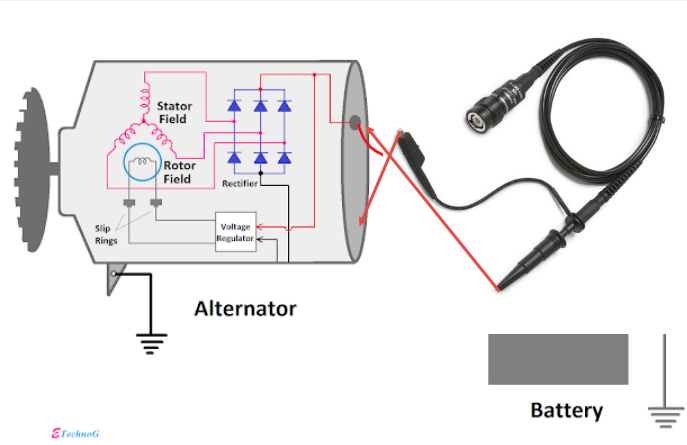

Would someone take a look at the illustrations below and let me know if I am thinking correctly? It would be appreciated.
[url=https://postimages.org/][/url][url=https://postimages.org/]online photo hosting[/url]

[url=https://postimages.org/][/url]

[url=https://postimages.org/][/url]

[url=https://postimages.org/][/url]

RE: Oscilloscope Connections.

Oscilloscope ground should NEVER be connected to anything except a ground. I nearly got got hit by a chunk of an exploding IC when I connected an oscilloscope ground to chassis, which I naively assumed was ground; it was not and it was actually hot.

TTFN (ta ta for now)
I can do absolutely anything. I'm an expert! https://www.youtube.com/watch?v=BKorP55Aqvg
FAQ731-376: Eng-Tips.com Forum Policies forum1529: Translation Assistance for Engineers Entire Forum list http://www.eng-tips.com/forumlist.cfm

RE: Oscilloscope Connections.

Agree with IRStuff. A safer approach to taking the measurement you want in your second example would be to take a ground from the vehicle, then use two separate probes on the stator outputs and set the scope to display the difference between the two channels.
