What is this Hydraulic symbol

thread1083-457727

What is this Hydraulic symbol

RE: What is this Hydraulic symbol

What little I see looks like a check valve with manual push-to-open operator.

Ted

RE: What is this Hydraulic symbol

Broadly concur with Ted - with the extra thought that that might be a pilot (to open) line coming in at bottom left (conventionally, I'd expect to see that drawn dotted and diagonal)

A.

RE: What is this Hydraulic symbol

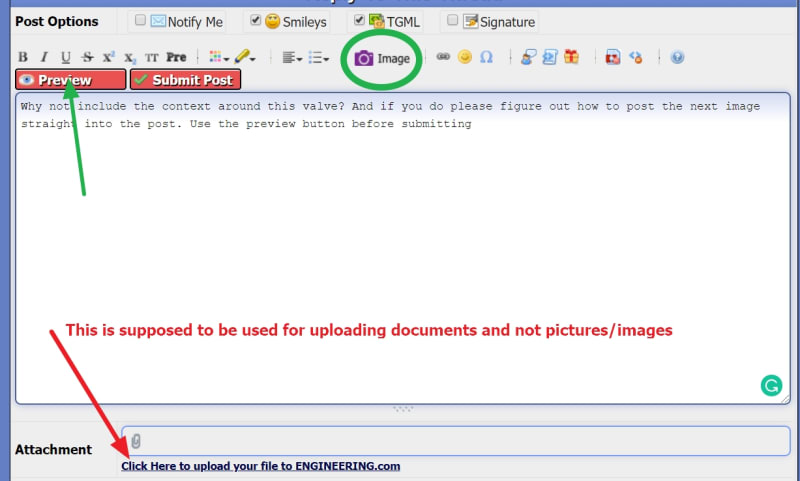

Why not include the context around this valve? And if you do please figure out how to post the next image straight into the post. Use the preview button before submitting


RE: What is this Hydraulic symbol

Check valve pilot operated with manual override.
This symbol doesn't match ISO 1219 but I often meet it at the drawings.

Thanks,
Dzyanis.
https://fluidpower.pro
