How would you model this?

How would you model this?

RE: How would you model this?

I would try by wrap the two
Edges lines around the sloped
Cylinder

RE: How would you model this?


The two edges lines of the strip around the sloped cylinder in the angle shown.

RE: How would you model this?

Clarification.

Its 4 lines in 2 are in right angle
in the other 2.

RE: How would you model this?

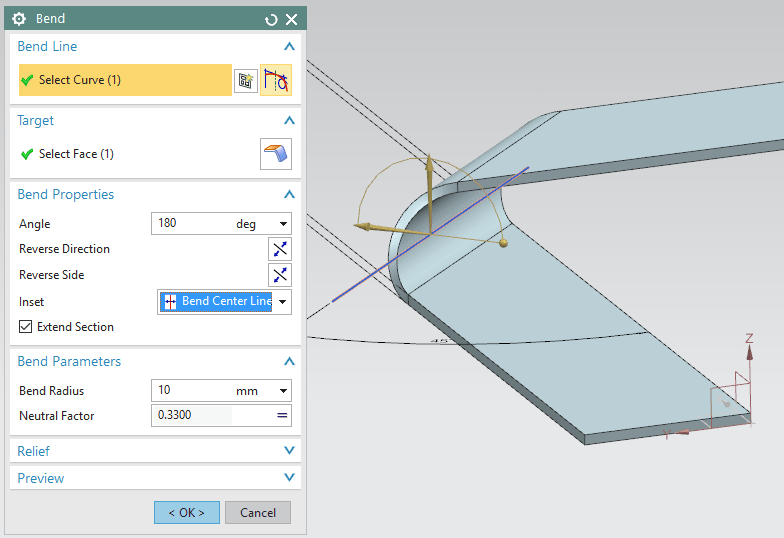

Using the Sheet metal application, it's a "bend" feature. The centerline of the bend 45degrees and the bend angle 180 degrees.


Regards,
Tomas

RE: How would you model this?

(OP)
I was thinking sheet metal was going to be the easiest option. Thank you for confirming Tomas!

Thank you,
Trent
NX 11.0.1.11

RE: How would you model this?

I'm also thinking so.

RE: How would you model this?

According the last post
I see that enough to wrap 2 edges.

Because the 2 others give the same
Wrap result.
