Unroll/ Flatten Cone Shape

Status
Not open for further replies.
Sort by date Sort by votes

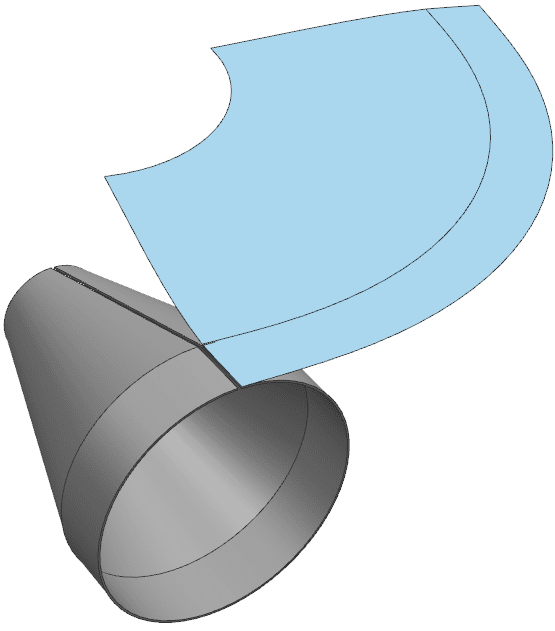

If it's truly a cone, You should be able to use the Wrap/Unwrap function to create the flattened profile.

John R. Baker, P.E. (ret)
EX-Product 'Evangelist'
Irvine, CA
Siemens PLM:
UG/NX Museum:

The secret of life is not finding someone to live with
It's finding someone you can't live without

Upvote 0 Downvote
I would use the Forming / Flattening tool.

Upvote 0 Downvote
