Catia Assembly sectioning view
5

Catia Assembly sectioning view

Catia Assembly sectioning view

(OP)
Hi,

Is it possible to section just one component in an assembly of multiple components?
Thanks

CAD 2015

RE: Catia Assembly sectioning view

in 2D Drafting Section Views? In properties of each instance, there is a tab for Drafting, "Do not cut in section views"

regards,
LWolf

RE: Catia Assembly sectioning view

in 3D you choose in Selection (of the definition tab in the Sectioning tool) the instances you want to cut.

regards,
LWolf

RE: Catia Assembly sectioning view

(OP)
LWolf,

I'd like (for instance) to show the sectioning of all components except the one placed in the blue circle..........



How could I do it?
Thanks!


CAD 2015

RE: Catia Assembly sectioning view

I seem to have a stronger license...

regards,
LWolf

RE: Catia Assembly sectioning view

(OP)
That's OK.
It looks like my license has less capabilities.
At least, I got the lesson from you.

Thanks a lot!

CAD 2015

RE: Catia Assembly sectioning view

If I remember well it is possible to save the 3D section output but I don't remember exactly how.
You could combine this output from 3D section with the product that you don't want to section and you will get the result.

It might be that although you don't have the license, you could achieve with macros the missing functionality from LWolf example. You could check for it.

RE: Catia Assembly sectioning view

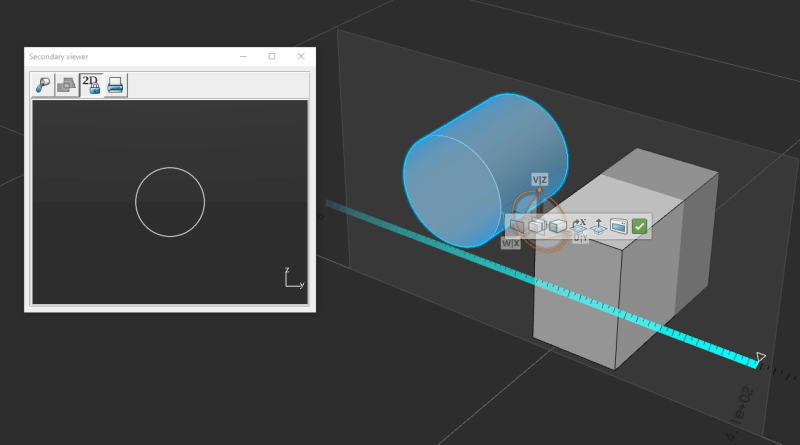

you have to select all the element you want to section before you call the section command

In my case I select the cylinder part first... the cube part is not selected

Eric N.
indocti discant et ament meminisse periti

RE: Catia Assembly sectioning view

(OP)
Thank you all!

CAD 2015

RE: Catia Assembly sectioning view

2
Hi.

I do not have the license of "DMU Space Analysis 2 (SPA)".
But, if use a macro, you can create a section even without a license.

All Japanese, but here is the sample source code.
Create a large number of cross sections in a short time.
Link

RE: Catia Assembly sectioning view

Kantoku, I saw the video from the link description, really nice. How do you deal performances issue? How can you generate so many elements so quick?

RE: Catia Assembly sectioning view

Hi iscariot.

I'm sorry, I am not good at English, so I may be misunderstanding.

· After executing the macro, click the curve that becomes the guide curve (spine).
· Enter section number in Input Box.
· Create a new CATProduct and create CATPart (sketch) for the cross section in it.
 (This is unsaved)

Also, in order to execute this macro, this library is necessary.
Link
Please put it in the same VBProject under the name "KCL.bas".

Red Flag This Post

Please let us know here why this post is inappropriate. Reasons such as off-topic, duplicates, flames, illegal, vulgar, or students posting their homework.

Red Flag Submitted

Thank you for helping keep Eng-Tips Forums free from inappropriate posts.
The Eng-Tips staff will check this out and take appropriate action.

Reply To This Thread

Posting in the Eng-Tips forums is a member-only feature.

Click Here to join Eng-Tips and talk with other members!
