SMath Studio - Units

SMath Studio - Units

(OP)
I'm doing some sheets in SMath Studio and am having some difficulty with units in some of the code equations. They produce a numeric value, but, the units are not consistent within the equation.

I'm currently adding another 'coefficient' that 'neutralises' the units within the equation and eliminates them, and providing a correct unit at the end of the equation for all parts.

Does anyone know of a simpler manner of overriding SMath units?

Dik

RE: SMath Studio - Units

Rewrite the equations with a consistent set of units and convert the inputs as necessary.

RE: SMath Studio - Units

(OP)
Thanks... I was afraid of that...

Dik

RE: SMath Studio - Units

(OP)
For example, the formula direct from the CSA Standard (concrete code) is Ec = (3300*sqrt(f'c)+6900)*(γ.c/2300)^1.5

where f'c is MPa, gamma is kg/m^3, c is MPa, all raised to various powers... the result is MPa. I have to introduce coefficients that render the results dimensionless and then tack on a unit.

Dik

RE: SMath Studio - Units

(OP)
Thanks Greg... would have to introduct coef that rendered the equation as dimensionless and then add one to the end.

Dik

RE: SMath Studio - Units

Quote:

Thanks Greg... would have to introduct coef that rendered the equation as dimensionless and then add one to the end.

That's what is discussed in the thread I linked. I don't have time to go through the discussion right now, but there are some alternative procedures in there.

Doug Jenkins
Interactive Design Services
http://newtonexcelbach.wordpress.com/

RE: SMath Studio - Units

(OP)

Quote (IDS)

That's what is discussed in the thread I linked. I don't have time to go through the discussion right now, but there are some alternative procedures in there.

Yes, went through that thread... good post... and was my original solution... I was just hoping there would be an easier method. SMath, if you run your mouse cursor over the formula, yields the units, and it would be a matter of correcting for these.

Dik

RE: SMath Studio - Units

(OP)
IRS: Thread was good...

thanks, Dik

RE: SMath Studio - Units

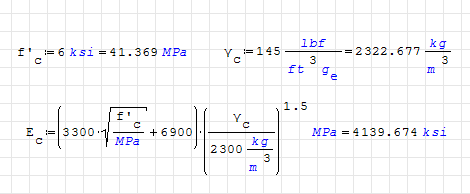

More bulletproof way is to make f'c and γ.c dimensionless using division by MPa and kg/m^3. It will allow to use US or SI units for definitions. Please see attached.

RE: SMath Studio - Units

(OP)
Yakpol:
Thanks, long time no hear...

Dik
