Thick Plate behavior in a 4 Bolt Unstiffened End Plate Connection

[ARPASEVAN]

Hello,

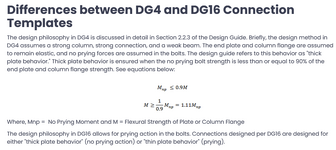

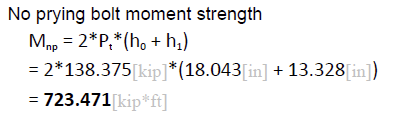

I have a 4-bolt unstiffened end plate connection that satisfies all DG-4 requirements except for the thick plate behavior criterion. My understanding is that the criterion to be met is:





Any clarification or suggestion on how to resolve this will be very much appreciated.

thank you.



[canwesteng]

You resolve it with thicker plates, or switch to DG16



[JoshPlumSE]

There are ways to consider prying action in the connection (I think that's covered in DG16). Though I don't believe these types of thin plate end plate connections would be appropriate for SMF or IMF moment connections.



[271828]

There is also a thin plate procedure in DG 16.

DG 4 and 16 have been replaced by DG 39. Recommend you check it out.



[ARPASEVAN]

You resolve it with thicker plates, or switch to DG16

Hello canwesteng, thicker plate does not work and I have seismic loads and need to use DG4. Thanks.



[ARPASEVAN]

There are ways to consider prying action in the connection (I think that's covered in DG16). Though I don't believe these types of thin plate end plate connections would be appropriate for SMF or IMF moment connections.

Hello JoshPlumSE, I need to use DG4 for seismic. Thanks



[ARPASEVAN]

There is also a thin plate procedure in DG 16.

DG 4 and 16 have been replaced by DG 39. Recommend you check it out.

I have but the requirement is still there. Thank You.



[canwesteng]

Thicker plates would resolve it, you're probably limited by the supporting flange now. So a flange doubler and stiffeners is your next bet, if you can't upsize columns



[ARPASEVAN]

Thicker plates would resolve it, you're probably limited by the supporting flange now. So a flange doubler and stiffeners is your next bet, if you can't upsize columns

Thank you. W18x119 works but that is a big jump from W16x67.
