Solidworks help for monday urgent!!

tillydingdong · Feb 25, 2017

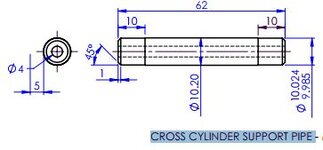

Hi Guys, so I have to make a project for uni and a part of it is a CROSS CYLINDER SUPPORT PIPE. Attached is the drawing I have to work off of and i have everything done but I dont understand what the 5 on the very left is or why its there. Can someone help? thanks!

View attachment 1789

dpryor · Feb 27, 2017

5mm dimension

That appears to be an errant dimension to me. I would disregard.
