Small Curves in a Drawing View

[jerry1423]

Is there a way to hide small curves from a drawing view via some sort of setting ?
I think I remember seeing a setting that will hide curves smaller than a specified size from a view, but I don't remember where it is.



[jerry1423]

I am on NX7.5



[SDETERS]

If you double click your view border then go to the hidden line tab. I think it is under here. Small features? this may work for ya.



[JohnRBaker]

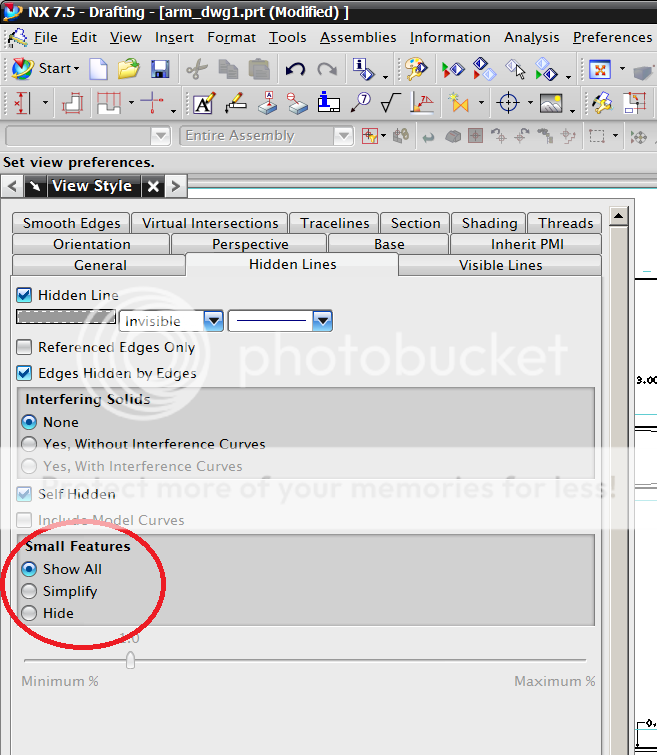

Here is the setting that you're looking for:

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Industry Sector
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.



[jerry1423]

Thanks for the replies.
I get the attached arror, even after trying a few differnt settings.



[JohnRBaker]

You might also want to make sure that on the...

Customer Defaults -> Drafting -> View -> Threads

...page that the 'True Hidden Line' option is toggled OFF.
