Measure Fillet Radius on FEMAP 2

Status
Not open for further replies.

Xprivate

Aerospace
May 26, 2023
47
CA
hey all, is there a specific feature on FEMAP to measure the fillet radius ?

Thanks

Replies continue below

Recommended for you

do you mean to apply a fillet radius, like in a CAD program ?

I thought there was, probably under 3D shape tools

"Hoffen wir mal, dass alles gut geht !"
General Paulus, Nov 1942, outside Stalingrad after the launch of Operation Uranus.

to measure on femap, not creating a fillet radius. i think I found a way to measure fillet of an imported parasolid. i find that there is no specific tool to measure but you can just create a point using a method "center" and then measure the radius of the point

Hello!,

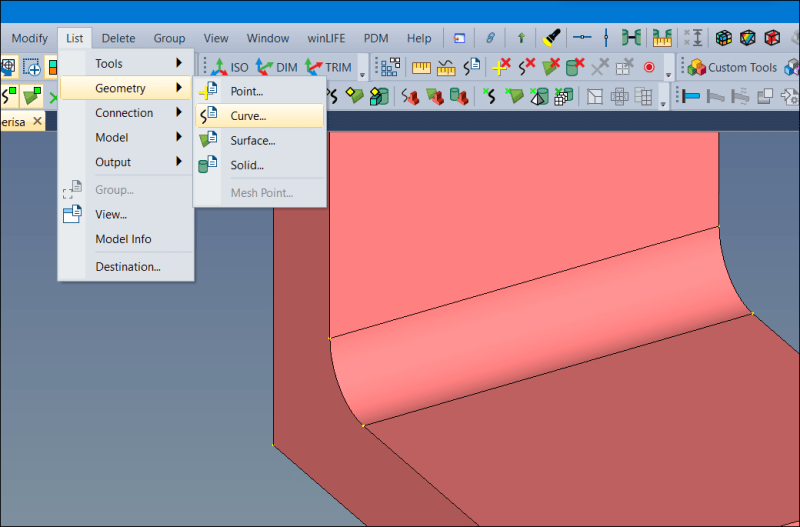

You can use LIST > GEOMETRY > CURVE and select the curve of the fillet radius:



List Curves
1 Curve(s) Selected...

[pre][tt] ID Type Color Layer Bias MeshElem ------------------ Points ----------------- #Surface Length Radius Angle
_________________________________________________________________________________________________________________________________________________
25 Edge 0 1 0. 0 20 21 0 23.56194 15. 90.[/tt][/pre]

Best regards,
Blas.

~~~~~~~~~~~~~~~~~~~~~~
Blas Molero Hidalgo
Ingeniero Industrial
Director

IBERISA
48004 BILBAO (SPAIN)
WEB: Blog de FEMAP & NX Nastran:

Hi Blas, Big fan of your FEMAP work. Sorry for the late reply . thank you this was really helpful
