From .sim to .prt by face from mesh commande ?
- Thread starter zmedwael
- Start date
JohnRBaker
Mechanical
Not that I'm aware of.
John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Industry Sector
Cypress, CA
Siemens PLM:
UG/NX Museum:
To an Engineer, the glass is twice as big as it needs to be.
John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Industry Sector
Cypress, CA
Siemens PLM:
UG/NX Museum:
To an Engineer, the glass is twice as big as it needs to be.
BlasMolero
Mechanical
Dear Zmedwael,
The only geometry that you can export is the IDEALIZED "*_fem1_i.prt" file, that is based in the master file *.prt. The geometry in the FEM file is based in POLIGON faces, not proper geometry, then not possible to export, for instance, as parasolid.

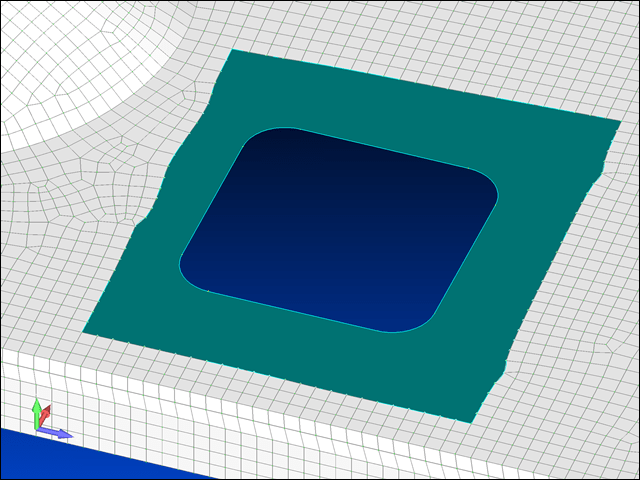

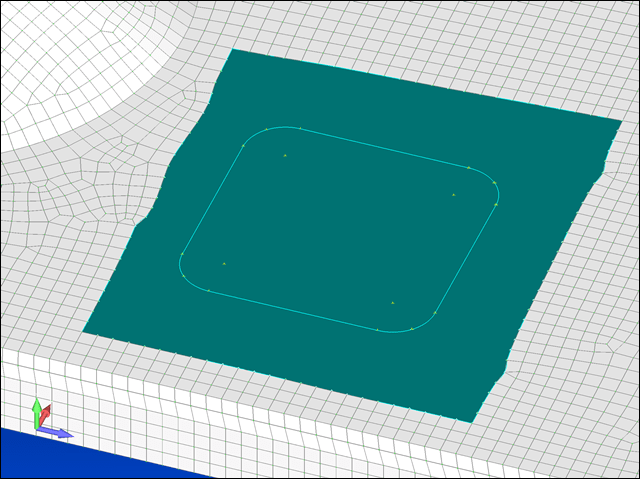

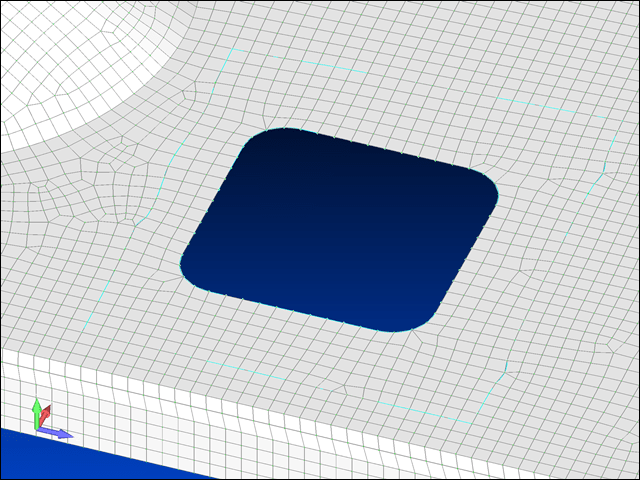

If you have a SIM model with only nodes & elements (not geometry) you can import the nastran input deck in FEMAP V11 (another FEA pre/ and postprocessor from SIEMENS PLM) to create surface geometry based in faces of Shell or Solid elements that you can manipulate and update the mesh based in the new geomtry, very powerful!.
Best regards,
Blas.
~~~~~~~~~~~~~~~~~~~~~~
Blas Molero Hidalgo
Ingeniero Industrial
Director
IBERISA
48011 BILBAO (SPAIN)
WEB: Blog de FEMAP & NX Nastran:
The only geometry that you can export is the IDEALIZED "*_fem1_i.prt" file, that is based in the master file *.prt. The geometry in the FEM file is based in POLIGON faces, not proper geometry, then not possible to export, for instance, as parasolid.
If you have a SIM model with only nodes & elements (not geometry) you can import the nastran input deck in FEMAP V11 (another FEA pre/ and postprocessor from SIEMENS PLM) to create surface geometry based in faces of Shell or Solid elements that you can manipulate and update the mesh based in the new geomtry, very powerful!.
Best regards,
Blas.
~~~~~~~~~~~~~~~~~~~~~~
Blas Molero Hidalgo
Ingeniero Industrial
Director
IBERISA
48011 BILBAO (SPAIN)
WEB: Blog de FEMAP & NX Nastran:
- Thread starter
- #4
Thank you BlasMolero and JohnRBaker for the information ,
for BlasMolero , i do the same as you explained , i import a Nastran bulk file to NX then i use the "face from mesh" command to create polygon faces from pshell .
the question is the possibility to pass from polygon faces to just faces (*.prt) , because the editing options are larger when we work in a .prt file like creating midsurfaces and other geometry simplifying tools , even when using NX open journals the program will be more efficient for manipulating operations .
I guess i will try to work with the available options in NX 8.5 .
Thanks again .
for BlasMolero , i do the same as you explained , i import a Nastran bulk file to NX then i use the "face from mesh" command to create polygon faces from pshell .
the question is the possibility to pass from polygon faces to just faces (*.prt) , because the editing options are larger when we work in a .prt file like creating midsurfaces and other geometry simplifying tools , even when using NX open journals the program will be more efficient for manipulating operations .
I guess i will try to work with the available options in NX 8.5 .
Thanks again .
