Evaluating the stability of a single I beam

[MIKE_311]

I am working on a design where I have 2 simply supported, single span (30ft), deep steel I beams (80" deep, 24" flanges) that will be used as supports for moving concentrated load (~1000 kip) on the top of each flange. ~3" thick flanges and webs.

The beams are too far apart (50ft) to tie them together with bracing. I was planning to get around the instability issues by setting the beams into concrete, at least half depth, if not more.

I'm looking for guidance on design and detailing requirements to ensure stability, and to ensure the LTB capacity equations used for design are valid. There is room to put some sort of end supports, or knee braces at the ends but I'm not finding a whole lot of guidance on how to design, of what forces to design to. For discrete bracing we usually use 2% of the flange force.

With the concrete, is plain concrete infill adequate? do I need to provide studs to establish composite action?

Any guidance would be appreciated.



[jhnblgr]

You need to provide a sketch of what you are proposing. Shear studs should be used if you plan to use concrete to provide bracing however yet again this isn’t clear how this is being implemented.



[MIKE_311]

You need to provide a sketch of what you are proposing. Shear studs should be used if you plan to use concrete to provide bracing however yet again this isn’t clear how this is being implemented.

I'll add a sketch, but the analysis is basically a single beam on two bearing supports with a moving concentrated load. Simple statics/mechanics 101 problem, but the assumption that the top of beam ends are braced laterally is removed, so L/r would not be valid as K =/= 1 for the top compression flange. The beam would be restrained on the bottom flange at the supports. The beam is adequate for LTB under the loads, assuming the ends are braced.

So, I need some way to ensure stability, but I'm unsure simply insetting the beam into the concrete will provide the necessary stability, or if I need to design/provide end supports, and if so, what lateral loads are they designed for?

I question the shear studs because the concrete wont be bracing the compression flange (like a bridge girder).



[jhnblgr]

So in short you want fixed ends? Like an integral abutment? The shear studs them would need to go on an end plate similar to a column base plate, but I would imagine the forces to be quite large at the ends, this might prove challenging.



[MIKE_311]

So in short you want fixed ends? Like an integral abutment? The shear studs them would need to go on an end plate similar to a column base plate, but I would imagine the forces to be quite large at the ends, this might prove challenging.

I don't want fixed ends. I want to ensure the top flange is braced at the end and since is going to be sitting on its own, and relatively deep, the entire beam is stable.

The concrete infill is only being proposed for stability.

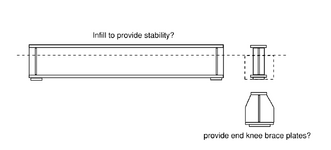

I added a sketch.



[HDStructural]

What kind of structure is this? A crane runway beam? a railway bridge? a highway bridge? There may be different requirements for each type of structure depending on the code that governs.
