I am having some issues with dims in the model that have FCS applied to them. When I go to the drawing I am unable to display the dims that have the FCS's applied! Tried turning all layers on but in the drawing when I select the Annotate tab and Show Model Annotations the dims and features do not display in the box.
In the example there is no d105 to select in the view as datum -D- IN CAPTURE 2. This drawing sheet has the dim created in the drawing.

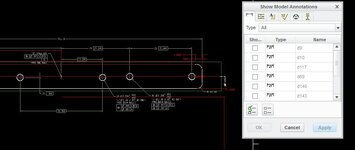

In order to get the d105 to display on the view I have to start a new drawing as shown in CAPTURE 1. Then d105 is available to select in show model annotations block.
In the example there is no d105 to select in the view as datum -D- IN CAPTURE 2. This drawing sheet has the dim created in the drawing.
In order to get the d105 to display on the view I have to start a new drawing as shown in CAPTURE 1. Then d105 is available to select in show model annotations block.
