Bend or Flex of part in Abaqus

Status
Not open for further replies.
alexripo

alexripo

Aerospace
Joined
Jul 11, 2020
Messages
10
Location
GB
Hi there! I'm trying to bend a part in Abaqus just like the Flex command for Solidworks.

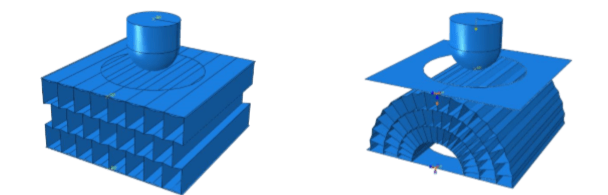

Any ideas how I could bend a part just like the photo below?


Sort by date Sort by votes
There are no such advanced geometry editing tools in Abaqus/CAE. You would have to prepare the part in some CAD software and then import it to Abaqus.
