Hi,
How could I place an annotation on the plane xy and/or zx?
At the moment, I can't place an annotation on other than plane yz......
Thanks

CAD 2015

Replies continue below

Recommended for you

Sort by date Sort by votes

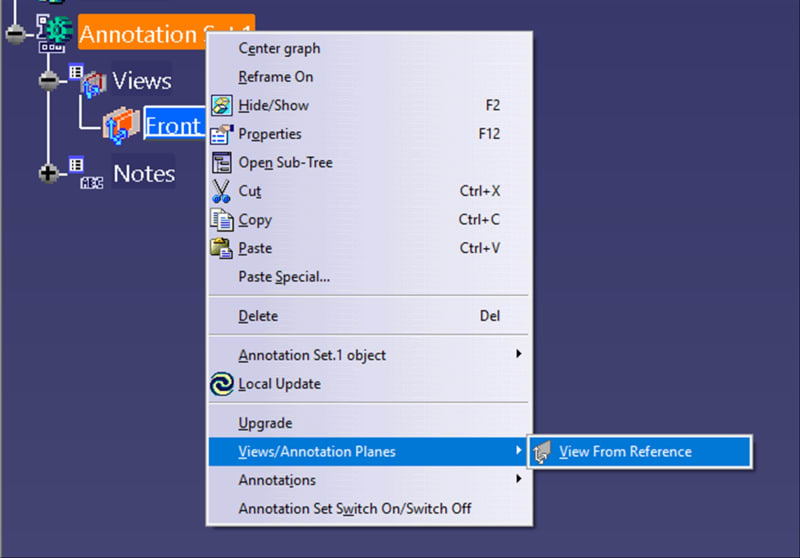

Choose your plane when you create a new view. RMB on Annotation Set.
