Help with Results.JointDispl

Help with Results.JointDispl

Help with Results.JointDispl

Hello everybody

I do not know how to use this function:

ret = SapModel.Results.JointDispl("ALL", GroupElm, NumberResults, Obj, Elm, LoadCase, StepType, StepNum, U1, U2, U3, R1, R2, R3)

Could somebody explain the use?

RE: Help with Results.JointDispl

It will return the displacement at the specified node for the given looadcase.

Are you getting an error when using the function?

S&T - www.re-tug.com

RE: Help with Results.JointDispl

Hello friend

I have write the code below:

public void JointDisplacement()
int numberofresult = 0;
string [] loadCases = Enumerable.Repeat("TH 01", numberofresult).ToArray();
string[] stepTypes = Enumerable.Repeat("Time", numberofresult).ToArray();
double[] stepNumbers = new double[numberofresult];
for (int i = 0; i <= numberofresult - 1 ; i++)
stepNumbers[i] = i;
string[] elementNames = Enumerable.Repeat("231", numberofresult).ToArray();
string[] objectNames = Enumerable.Repeat("231", numberofresult).ToArray();

double[] U1 = new double[numberofresult];
double[] U2 = new double[numberofresult];
double[] U3 = new double[numberofresult];
double[] R1 = new double[numberofresult];
double[] R2 = new double[numberofresult];
double[] R3 = new double[numberofresult];

ret = SapModel.Results.Setup.DeselectAllCasesAndCombosForOutput();

ret = SapModel.Results.Setup.SetCaseSelectedForOutput("TH 01");

ret = SapModel.Results.JointDispl("231",
ref numberofresult,
ref objectNames,
ref elementNames,
ref loadCases,
ref stepTypes,
ref stepNumbers,
ref U1,
ref U2,
ref U3,
ref R1,
ref R2,
ref R3);

for (int i = 0; i < numberofresult; i++)

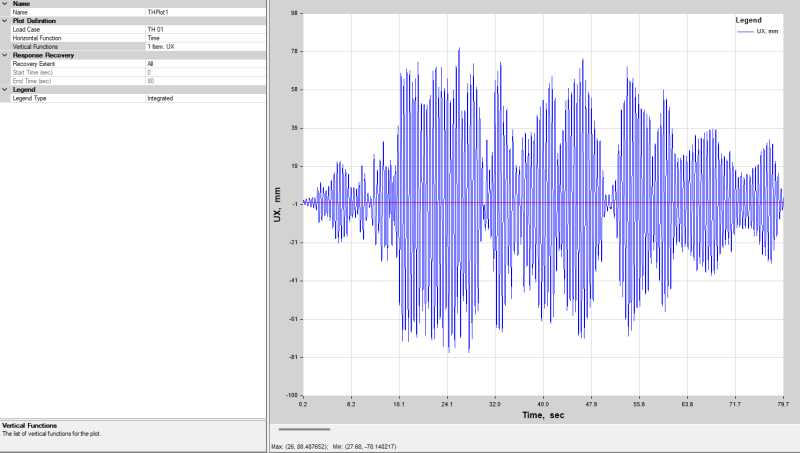

My goal is having the plotted function in a .txt file in order of achivieng a wrote the code.

Any suggestions of how can i achieve that?

RE: Help with Results.JointDispl

I have uploaded an example to my github to retrieve time history displacements as well as the support .edb file.

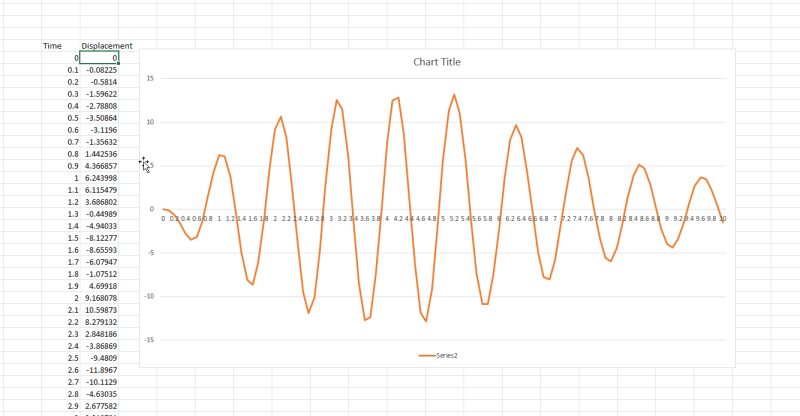

I access the results through the database tables. I did my data retrieval in Python, but plotted in excel. For some reason matplotlib was plotting oddly for me.

S&T - www.re-tug.com
