Parallel cables termination

Status
Not open for further replies.
helpyou

helpyou

Automotive
Joined
Sep 26, 2011
Messages
79
Location
QA
HI

How I terminate two cables in parallel in the loop. The loop consists of detector in the field, junction box, marshalling cabinet, and system cabinet.

Already one cable exists, i am adding a new cable to decrease voltage drop.

Thank you

Sort by date Sort by votes
Hi Helpyou,

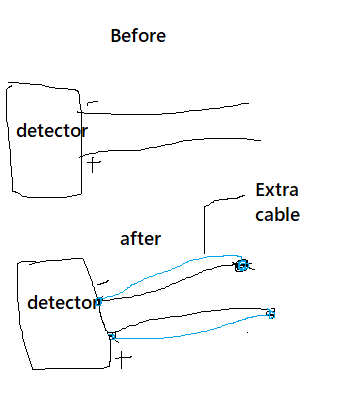

Connect as attached
So that the resistance of previous black colour cable gets reduced, once the blue colour cable is connected to the respective black colour cable.
