Simulating Deformation with a gap

thread569-490803

Simulating Deformation with a gap

Simulating Deformation with a gap

(OP)
I'm trying to run a fairly simple simulation and getting nowhere with it.

I'm simulating compression of a cantilever tab until it hits a stop. After that it should go into sliding support against that stop and 2-point supported beam deformation.





I'm probably not using right solver and/or constraint.

Seems like such a simple problem. Infuriating.

RE: Simulating Deformation with a gap

Did you define contact ? How does it looks like with the deformation scale factor set to 1 (true scale) ?

RE: Simulating Deformation with a gap

(OP)

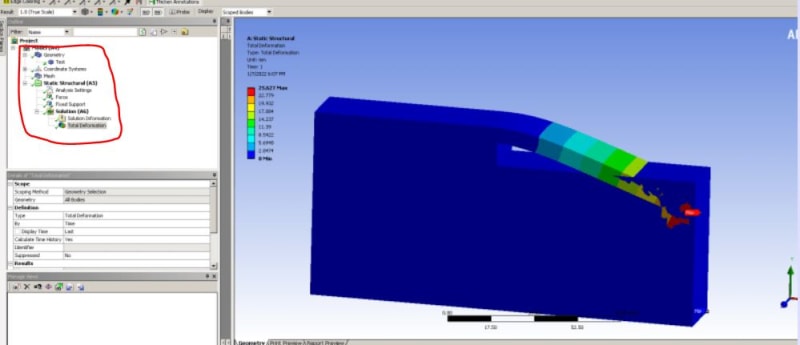

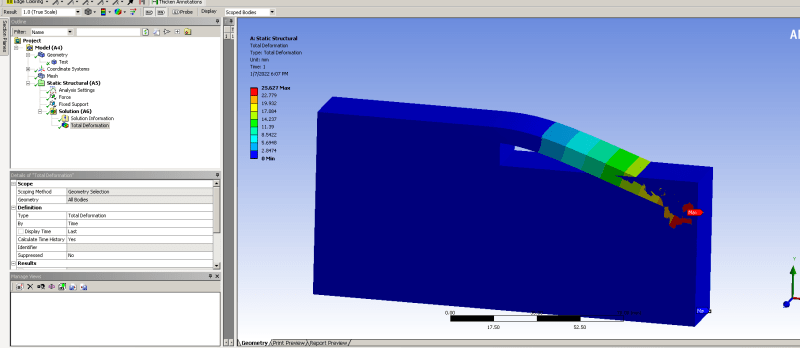

It's true scale. Simulation doesn't understand there is another surface.

RE: Simulating Deformation with a gap

You have not told the software to detect the presence of another surface/entity i.e., you need to prescribe contact (constraint; thou shall not pass!) condition between the two entities. Also, you are supposed to perform a nonlinear analysis.

I would recommend taking a step back and running a Hertzian contact analysis. Compare analytical predictions against numerical ones. Finally, find a gray haired mentor, if possible.

*********************************************************
Are you new to this forum? If so, please read these FAQs:

http://www.eng-tips.com/faqs.cfm?fid=376
http://www.eng-tips.com/faqs.cfm?fid=1083

RE: Simulating Deformation with a gap

I do not see any connections inserted under the model tree which is nothing but no contact defined.



Model=>insert connections=>insert contact => frictional or frictionless=>define the cantilever tab as slave(less stiffness part) and stop surface as master (higher stiffness part)

Red Flag This Post

Please let us know here why this post is inappropriate. Reasons such as off-topic, duplicates, flames, illegal, vulgar, or students posting their homework.

Red Flag Submitted

Thank you for helping keep Eng-Tips Forums free from inappropriate posts.
The Eng-Tips staff will check this out and take appropriate action.

Reply To This Thread

Posting in the Eng-Tips forums is a member-only feature.

Click Here to join Eng-Tips and talk with other members! Already a Member? Login
