Assemble parts

NaWin55 · Aug 28, 2021

Hi Everyone
i have a part in a assembly
i need to assemble a bracket on to main assembly at multiple places with different directions and rotations
i have created points and axis-system at different locations
is is possible to loop this using VBA

lets imagine a rectangular curve and 2 points on each side and i need to assemble a small L-Bracket at each side
i need to automate this

i am not experienced assembly automation i looked in V5.CHM file but didn't understand
any help

thanks

ferdo · Aug 28, 2021

Is it a repetitive task so is it worth making a macro for this? How much time you will invest making this macro?
Just a few questions which you have to put yourself before making a macro...

Regards
Fernando

https://www.youtube.com/playlist?list=PL9mSHa4SOedV3dr0D3kfIWFUg7mIYm94k

https://www.youtube.com/playlist?list=PL9mSHa4SOedVUEkEojiX_kdzpe0sDbaz2

NaWin55 · Aug 28, 2021

it is repetitive task
i have time to create this task i just need help
the part i am going assemble on a main part is same
and there are some locations on main part where i have to assemble small bracket

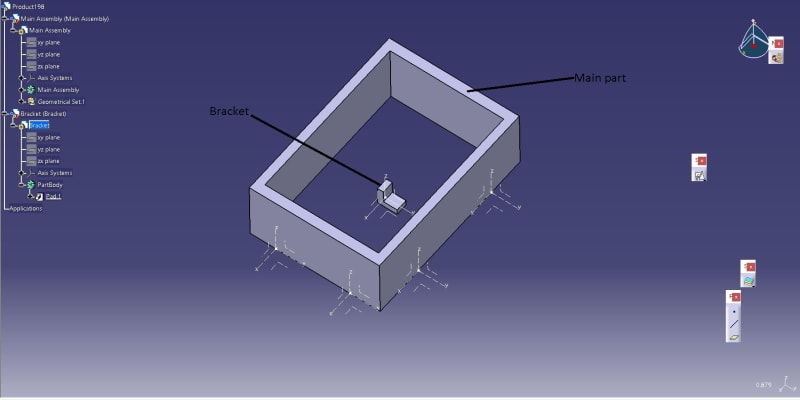

here is the example image

i can automate axis at different locations using vba
but i need to know how to assemble the bracket at those locations with constraints

thanks
