How to Edit default font option in the drawing ambient

How to Edit default font option in the drawing ambient

(OP)
Hi!

I'm using CATIA V5 2019 R29 and I would like to modify the font text size in the drawing ambient because the default value is set to 3.5 and every time I need to change to 3 manually, how can I do this?

Thanks.

RE: How to Edit default font option in the drawing ambient

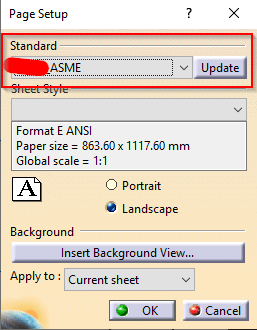

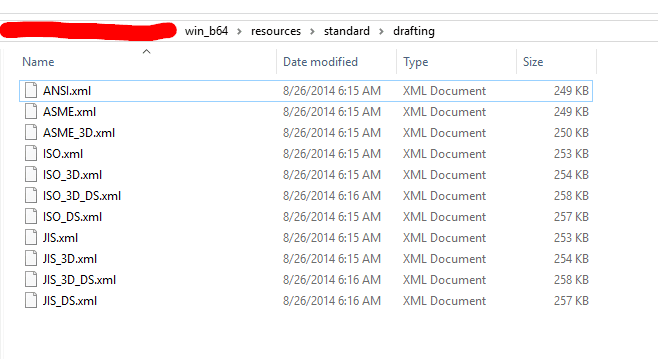

You have to drill down into your drafting standard and change the XML file values. They are in the CATIA install location or possibly in other folders depending on your companies setup or use of ancillary automation tools. These are the files that populate your drafting standard under file >> Page Setup >> Standard.






RE: How to Edit default font option in the drawing ambient

(OP)
Hi!

Thank for your answer. What ha you used to edit the .XML file?

RE: How to Edit default font option in the drawing ambient

You can use default editor available in Tools-Standards when running CATIA in admin mode (/admin switch).

RE: How to Edit default font option in the drawing ambient

(OP)

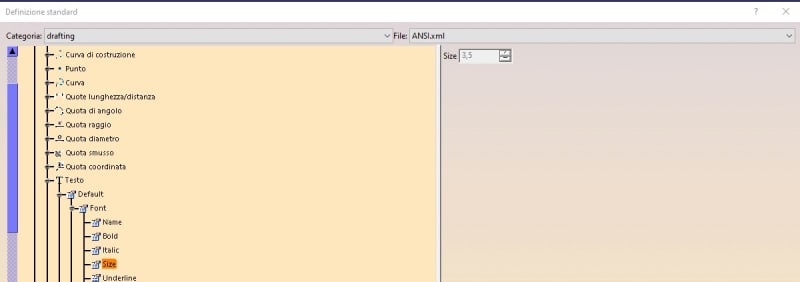

I have found it but I cannot edit it even in admin mode.
