Reg.Dimensioning in drafting

thread560-445904

Reg.Dimensioning in drafting

Reg.Dimensioning in drafting

(OP)
Hi friends,
Got an issue here.When i try to dimension a sheetmetal part,i get double the dimension value with only one dimension line.I have no clue to it.Can anyone pls share your insights?Thanks.

RE: Reg.Dimensioning in drafting

Is it maybe a circular surface? So it is showing a diameter?

Tesak
http://scripts4all.eu/txtoncurve/ - Text along a curve for Catia V5

RE: Reg.Dimensioning in drafting

(OP)
Hi tesak,
Thats Brilliant.That might be one of the reasons.But what i pick here is a flat edge.Will check it.Thanks a lot.

RE: Reg.Dimensioning in drafting

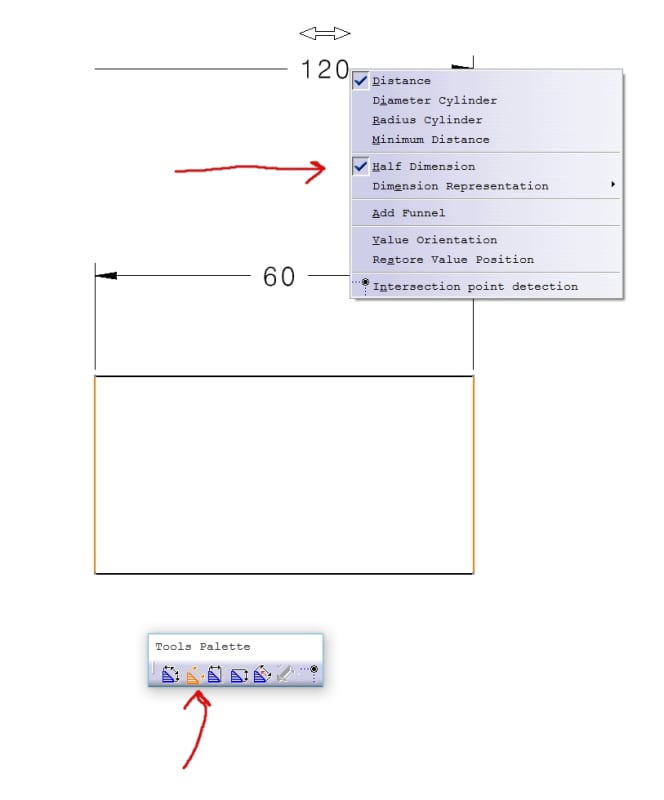

sometime this gets selected!
uncheck half dimension

RE: Reg.Dimensioning in drafting

(OP)
Hi rickyt,
Excellent!I havent noted this yet.
