Cant select nodes for boundary conditions

Cant select nodes for boundary conditions

Cant select nodes for boundary conditions

I have cylinder & want to apply a fixed boundary condition to the bottom so I select the appropriate nodes...

I click apply and get....

Any idea why my selection is being ignored?

RE: Cant select nodes for boundary conditions

Because your selection is in the category of "Geometry Selection". For your nodal/elemental selection, you could define a Named Selection object with a group of nodes/elements, and apply it to the boundary condition.


RE: Cant select nodes for boundary conditions

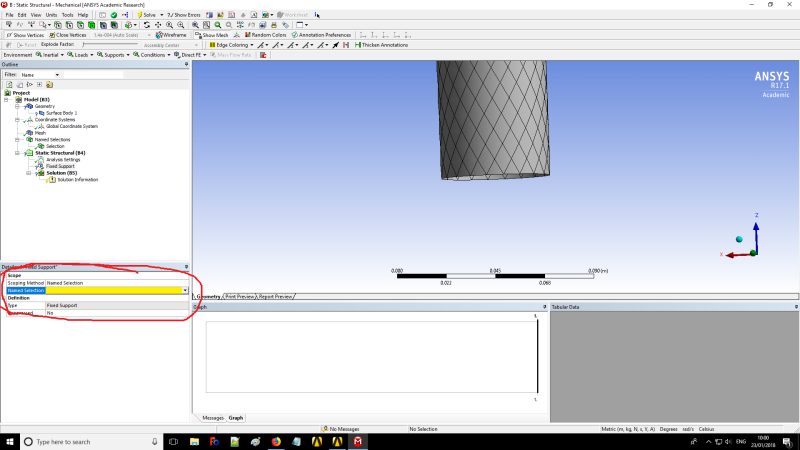

Hi I tried that. I created a Named Selection for the boundary nodes (called "Selection" in the picture) but when I try to use that Named Selection it does not appear as an option in the Named Selection pull down...

RE: Cant select nodes for boundary conditions

My model behaves the same way (17.0). There seems to be a restriction in Workbench. Is there a particular
reason you can't use the bottom edge instead of nodes?

RE: Cant select nodes for boundary conditions

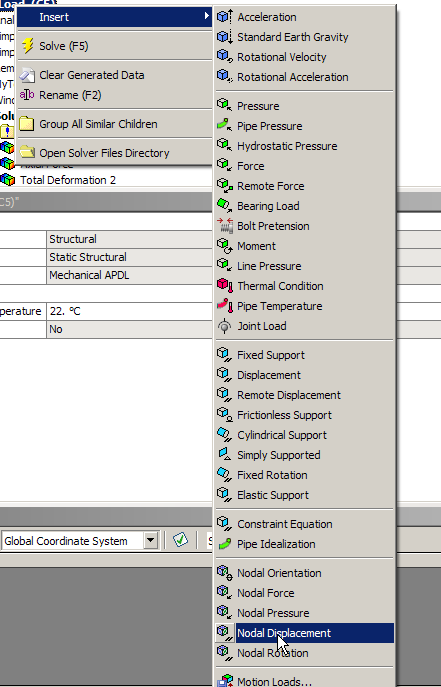

It seems that you are trying to apply a boundary condition designed to work on geometry to a FE-entity. When you apply a boundary condition to the FE-entities you will have to use boundary conditions for same.

Hope this helps

RE: Cant select nodes for boundary conditions

Many thanks petb that was driving me nuts
