Why is my slant dimension is not equal to original diagram?

  • Thread starter Thread starter kingston123
  • Start date Start date
K

kingston123

Guest
My diagram: View attachment 2110 (I marked with red colour)

Original Diagram: View attachment 2111

Why is my slant dimension is not equal to original diagram? :(


Attachments

  • 20.16.JPG
    46.9 KB · Views: 5
  • 20.16 original diagram.jpg
    20.16 original diagram.jpg
    44.8 KB · Views: 4
The top chamfers are wrong because you didn't follow the dimensions in the drawing. You should have dimensioned both chamfers with the 16 x 16 dimensions, and ignore the 32 dimension.

The 40mm dimension on the drawing is the height of the center gusset.

View attachment 2112


Attachments

  • kingston.JPG
    34.1 KB · Views: 4
Why is my 40mm dimension on the drawing wrong?

Why is my 40mm dimension on the drawing wrong?

Look closely at the 3-view drawing in your original post.
View attachment 2113

The 40mm dimension (circled in red) does not define the chamfers - it defines the height of the gusset

The chamfers are dimensioned with the two 16 mm dimensions (circled in blue)


Attachments

  • kingston.JPG
    37.3 KB · Views: 4
The 40mm dimension (circled in red) does not define the chamfers - it defines the height of the gusset

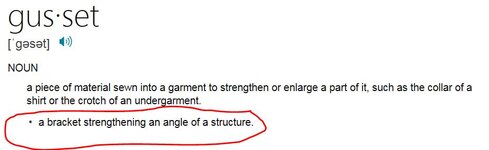

What is the meaning of gusset? How does it look like?


Attachments

  • kingston.JPG
    31.8 KB · Views: 2
  • kingston2.JPG
    37.6 KB · Views: 3
