Uniform Depth Holes from Varying Surface

  • Thread starter Thread starter MikeRags
  • Start date Start date
M

MikeRags

Guest

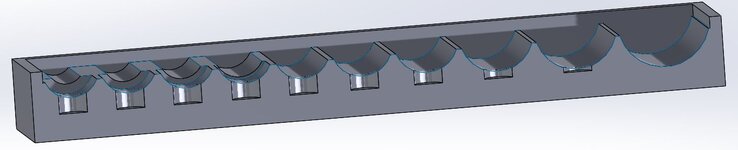

Hello, as shown in the cross section below, I am trying to make uniform depth holes on a surface that varies in depth. I would like 6mm diameter holes to a depth of 3mm below each half cylinder cutout. I tried using an offset surface with a value of 0, then using that surface for the "From:Surface" for a extruded cut. This throws an error I think because the surface is not all in the same plane. Is there any way to do this without making 10 exuded or revolved cuts to the proper depth? Thanks!


View attachment 2022


Attachments

  • Model Cut in Half.JPG
    Model Cut in Half.JPG
    42.5 KB · Views: 1
