Threaded Holes Callout

[Mechman50]

Can someone assist in cleaning up this tapped hole call out. As you can see, the placement of the Appended Text is less than desirable. The M8X1.25 is a feature call out, of course.


+++++++++++++++++++++
NX 11.0.2.7



[jerry1423]

You need to right justify it.

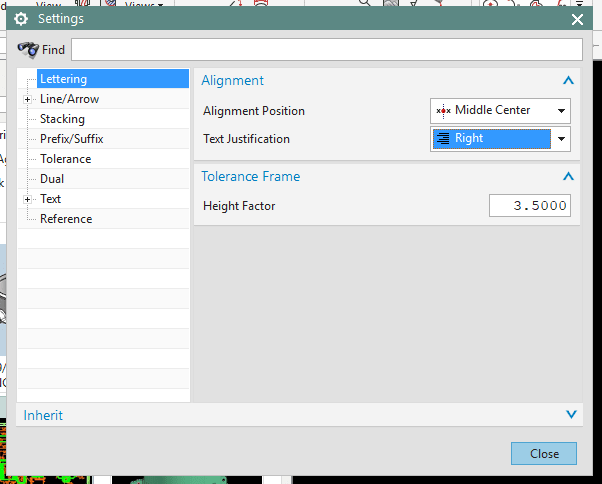

rmc on dimension -> settings -> lettering -> text justification -> right

Jerry J.
UGV5-NX11



[Mechman50]

Thanks Jerry. See results attached.

+++++++++++++++++++++
NX 11.0.2.7



[cowski]

Alternately, you can try keeping the left alignment and adjusting the leader line vertical alignment to "middle" or "bottom" to see if it helps.
