Surface Pattern Creation Problem..

  • Thread starter Thread starter geeege
  • Start date Start date
G

geeege

Guest

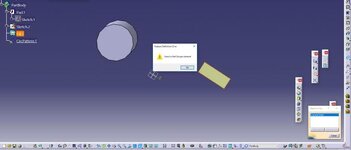

Recently i am facing a problem when i m trying to use circular pattern for a surface.
At the selection of the object to pattern i cant select the surface cause i receive the
feature definition error " select a part design element" as it depicted below.

View attachment 2232

Moreover when im trying to reproduce the following tut,
http://catiadoc.free.fr/online/cfyug_C2/cfyugcircularpattern.htm
i cannot select any of the features (pattern etc).

View attachment 2233

Does anyone know the solution for the issue..

Thanks


Attachments

  • Defin error.jpg
    Defin error.jpg
    15.4 KB · Views: 5
  • unselectable.jpg
    11.3 KB · Views: 4
Change the workbench from Part Design to Generative Shape Design, and try the Circular Pattern command again.

Last edited:
Yes, That works fine for me..

Thanks.

Yes, That works fine for me..

Thanks

Also try keeping solid operations in a body and geometrical features from GSD (like Fill) in a Geometrical Set. If you grow your model with keeping everything inside one Body you will have a hard time with moving around it.

Thanks for such a variable post, thanks for highlighting this issue.
