sheet location in repeat region

[wildmodeler]

Is there any way to get the sheet location of a part/assy to show in a repeat region?
I can get the zones.
Thanks



[patrickstapler]

How did you get the zones to show in the repeat region?



[wildmodeler]

OK got it. Put a view using a blank part where the bubble you want to call out in the bom is. In the region make the sheet & zone columns comments. Add this text to the rows: "&sheet:view:002" "&pos_loc:view:002" respectfully.
with the 002 as the name of the view placed earlier



[canoemike]

Can you post an example pic of table ?



[wildmodeler]

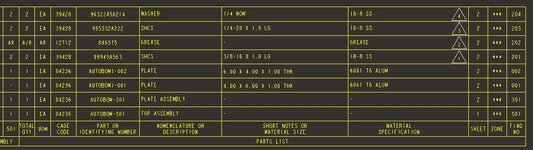

pic of bom

Here you go



[canoemike]

Here you go

Thanks for the pic.

One question: Is the &sheet a parameter with-in the part or assembly that requires manual input ?

We tried something like this years ago but the sheet number could not be automated then, maybe you have found a method.



[wildmodeler]

It runs off the grid of the format. You have to set it up in the format. The zone also



[canoemike]

It runs off the grid of the format. You have to set it up in the format. The zone also

After posting I did little reflecting and I think I do recall somewhere hearing about this method. So with any luck I will have to find some time to give it a go.

Thank you for your time and knowledge.View attachment 6977



[canoemike]

We use drawing templates. Should I add the grid to the format used in the template or add a grid to the template ?

Also- Are there any negative implications of using drawing templates when using these location parameters that you are aware of ? Thanks again for your time.


Pro-E the gift that keeps on giving..
View attachment 6979



[wildmodeler]

grid is added in the template, shouldnt bother any thing else. sorry to take so long



[canoemike]

Hi Wildmodeler,

Yes it has been a while. I gave this the old college try many months ago and still had something missing. I am just to busy with other opportunities to really dig into it and explain were it is or is not working for me. So I think I will have to leave this one on the back burner for now.

I do know this you have been very helpful and I value your help. Thanks fellow past CT resident.
