Dear all people
I am a new person using Inventor. I got a problem wanted to get your advance.

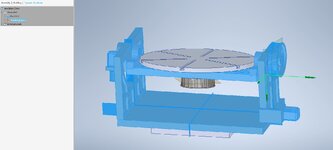

I designed a 4th and 5th axis for CNC (Fig. 1). Now, I want to simulate it dynamically to find out vibration.
I can rotate the 4th and 5th axis manually (for sure). But when I open Dynamic Simulation, the tree does not show the Mobiles groups. The Grounded includes the 4th axis but (Fir. 2).
What did I do wrong?
Also, for dynamic simulation, I defined 2 shafts for the 4th and 5th axis as Rotational Joint. All mates were defined as Constrain. Am I correct?
Thank you very much
