Odd Surface

  • Thread starter Thread starter Scott Monday
  • Start date Start date
S

Scott Monday

Guest
I am trying to create a negative edge on a very complex surface for a die. I haven't done a lot of surfacing in Solidworks, so I'm a little under the gun.

A portion of the surface is already at a negative edge, but other areas have a positive edge. I've tried creating a knit surface then a loft but it won't work.

Any suggestions would be great!

Thanks in Advance,

S. Monday

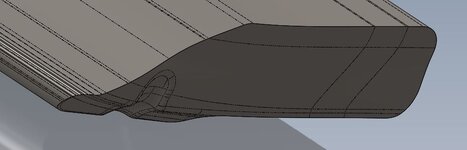

View attachment 7006

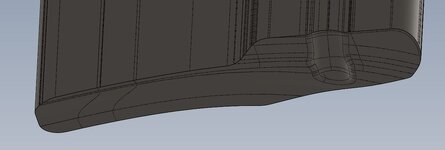

View attachment 7007


Attachments

  • die image 1.JPG
    die image 1.JPG
    45.5 KB · Views: 2
  • die image 2.JPG
    die image 2.JPG
    37.9 KB · Views: 2
