NX 10_ Exporting shaded view in drafting environment with view break to pdf

Status
Not open for further replies.
tariq89

tariq89

Mechanical
Joined
Jul 3, 2013
Messages
14
Location
OM
Hello NX users,

I am facing a problem with exporting shaded view to PDF from NX 10 drafting environment ( export to pdf from NX )

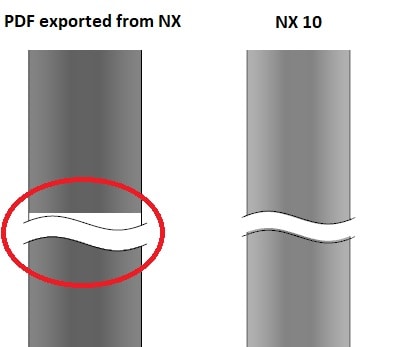

by using the "view break" feature the shaded view after exporting to PDF will be damaged as shown in photo below:



dose any body face this problem? and what is the solution for it please.

thank you!
Tariq
