NX 10, ordinate dimension giving negative value...? 1

[Shadowspawn]

Quick question... When i apply the dimension to the left of the ordinate, the resulting dimension shows a negative value ( -3.000). Where's the setting to show the dimension in absolute value (3.000)??? Anyone?



Regards,
SS

CAD should pay for itself, shouldn't it?



[Arkance/PhoeNX]

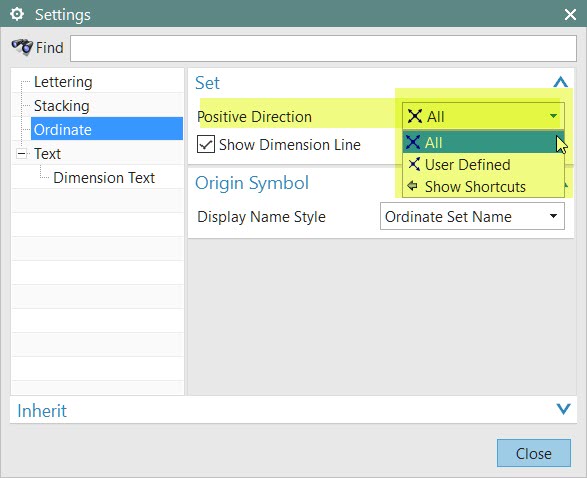

In the settings for the ordinate dimension, change the positive direction to All.

Anthony Galante
Senior Support Engineer


NX3 to NX11 with almost every MR (24versions)
