How create Flange from edge of Flange lofted?
How create Flange from edge of Flange lofted?
Tek-Tips is the largest IT community on the Internet today!
Members share and learn making Tek-Tips Forums the best source of peer-reviewed technical information on the Internet!
-
Congratulations JAE on being selected by the Eng-Tips community for having the most helpful posts in the forums last week. Way to Go!
Lofted flanfe don`t let create base flange
- Thread starter Snakegreen
- Start date
- Status
thomaskoer
Computer
mmh, I assume the loops are open somewhere.
I think, I tried everything for the 1st two geometries. Convert, Optimize Face, Cleanup etc. - without success.

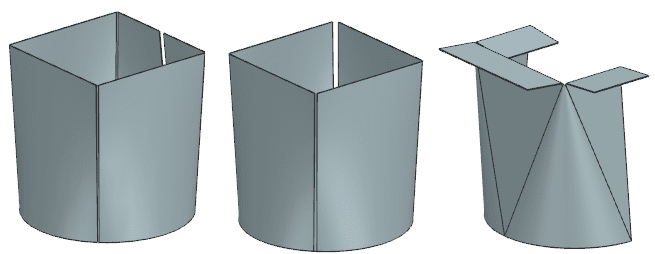

The third example has the same dimension, but it's only half of the square and half of the circle, dimensions are the same as before. But the Lofted Flange command solves it differently. Whatever, there I can Flange "everthing".
I think, I tried everything for the 1st two geometries. Convert, Optimize Face, Cleanup etc. - without success.
The third example has the same dimension, but it's only half of the square and half of the circle, dimensions are the same as before. But the Lofted Flange command solves it differently. Whatever, there I can Flange "everthing".
Below is a previous thread that covers the same transition that you have.
