ISO Weld Symbols

[saspinall]

Hi

Anyone else having trouble with the ptc standard ISo weld symbol and there not being enough room, even for the fillet size...

Do you have to modify the symbol, redefine symbol etc

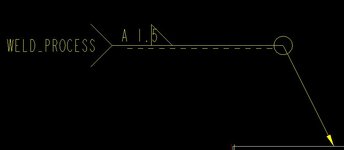

See attached..

Thanks

Stuart



[saspinall]

nobody commenting....?

Stu



[KK_designer]

see link:

http://www.mcadcentral.com/creo-drawing/9703-symbol-creati-n.html

for info

But if you need something to move go to format- symbol galery- redefine- pick the symbol and try little bit to move and see what happen



[rebo2610]

I've seen it when I try to use a fraction - there is a set number of characters allowed. PTC should make it variable and move the fillet symbol over as required.



[saspinall]

Thanks...looks like I'll have to redefine the standard ones and create our own weld symbol library....

Stu
