how to roll sheet metal?

[bxbzq]

Hi there,
I'm looking for a way to roll sheet metal as shown in attached picture.

Thanks.



[jerry1423]

It looks like this video may be able to help you with the curve, then use the curve to extrude the sheet metal with a specific thickness.

https://www.youtube.com/watch?v=I995mTomo1g

Jerry J.
UGV5-NX11



[bxbzq]

OK. I create one helix curve, offset it with sheet thickness, then connect the two curves. Now I can extrude from a close curve. Looks could do the job. Thanks.



[jerry1423]

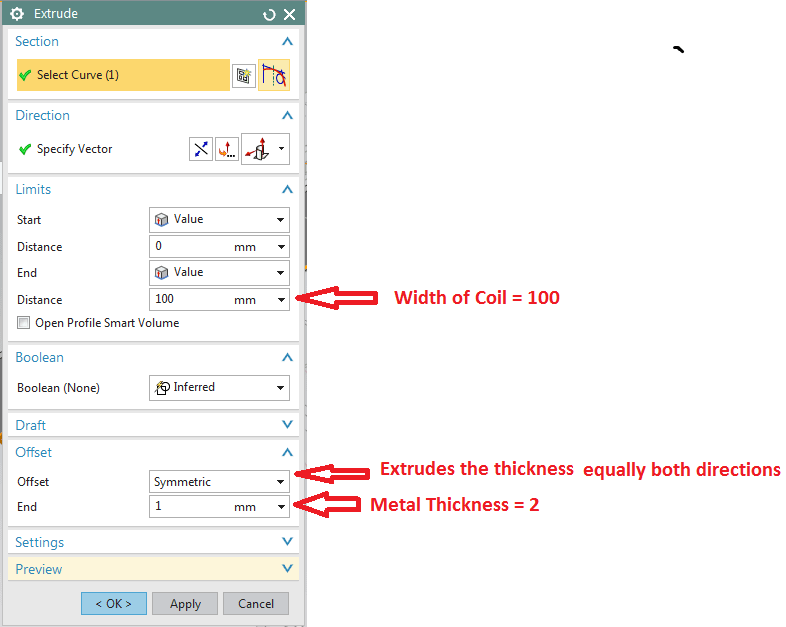

Select the curve and extrude in the direction of the width of the coil.

Jerry J.
UGV5-NX11



[bxbzq]

Nice. Thank you, Jerry.



[deedub777]

Now take this into NX Sheet Metal and run 'Convert to Sheet Metal'. You can then create the flat pattern.
