How to export deformation diagram in SAP2000

Status
Not open for further replies.
CorporalToe

CorporalToe

Civil/Environmental
Joined
Mar 9, 2024
Messages
45
Location
CA
So when I run analysis, I can see the deflection in any particular beam, is their a way to export this? I can export the moment and shear force diagrams, but not the deformation shape diagram.

Sort by date Sort by votes

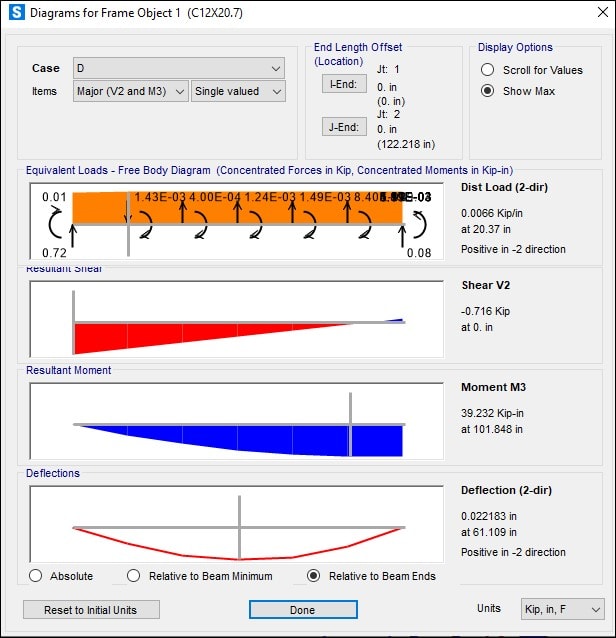

Unfortunately, there is no easy way to do this. About the best you can do is display the shear or bending moment diagram (F8), right-click on the member under consideration. That'll give the following:
