Error in connector elements

Status
Not open for further replies.
LeoMesquita1989

LeoMesquita1989

Civil/Environmental
Jun 25, 2015
1
Hi,

I'm modeling a composite beam, which has a concrete slab and a W profile steel.

For to simulate the adhesion I'm using the slide-plane + align element of connection.

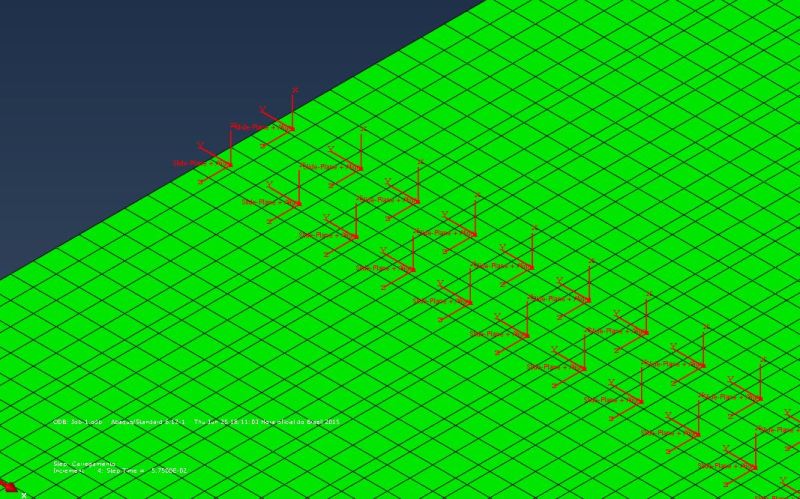

These elements are placed in the following position:

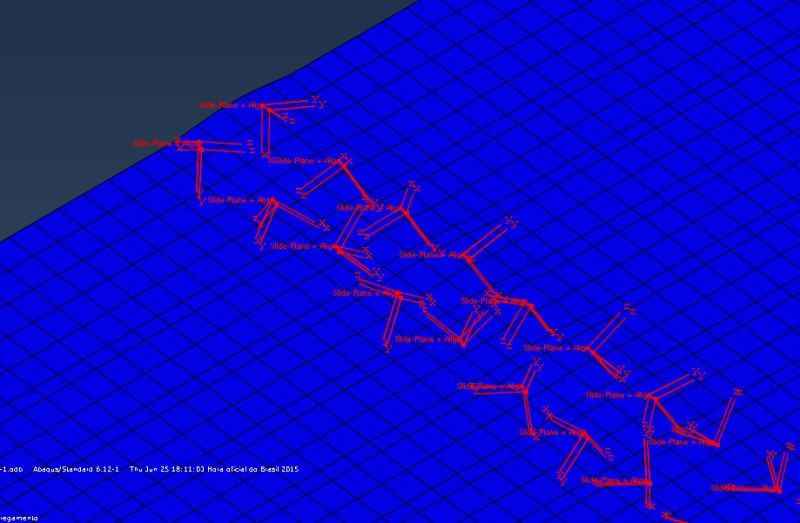

When I realize the analysis the elements are distorting:



someone could help me?

Thanks!
