Cannot create FLAT PATTERN view in drafting environment

Status
Not open for further replies.
czr

czr

Mechanical
Joined
Jan 18, 2017
Messages
5
Location
PL
Hello there,

having problem with creating sheet metal pattern view in a draft.

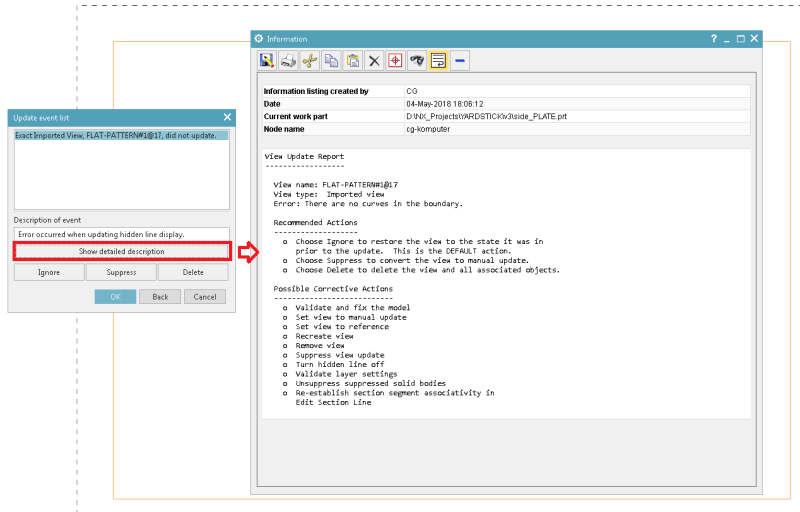

When trying to do that, I'm getting this message:


Would appreciate any advice on that problem.

Sort by date Sort by votes
Try switching to that view in the 3D part. Check if there are the needed curves in there.
Are you using the correct reference set? (set it to entire part for checking)

Ronald van den Broek
Senior Application Engineer
Winterthur Gas & Diesel Ltd
NX9 / TC10.1.2

Building new PLM environment from Scratch using NX11 / TC11
