autocad electrical

0

02electric2002

Electrical
Joined
May 15, 2025
Messages
3

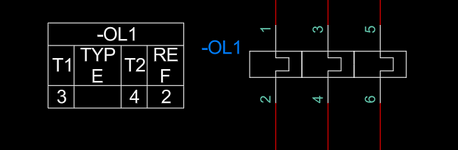

When inserting a thermal overload relay in AutoCAD Electrical, the cross-reference table only displays the 3-4 contact, while the other terminals (1, 2, 5, 6) do not appear, even after updating the drawing. Is this a configuration issue or an intentional behavior of the software?Screenshot 2025-05-20 140654.png
