HI,

I have some problems with appearing attributes of 3d model in title block in drawing template.
It seems I've done all yours suggestions and it still does't work.
I attached my templates and will be gratefull for solving my problem.

 https://files.engineering.com/getfile.aspx?folder=b4dabd2b-e8c4-4803-81e2-efed53cf03ea&file=TEST.7z
Sort by date Sort by votes
I'm using NX11

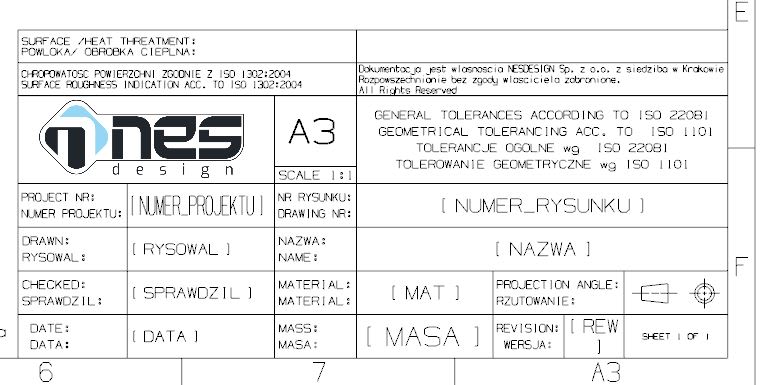

The title block im my drawing template has all fields filled corelated to attributes by using this prefix DB_DWG_TEMPLATE_....
My 3d model template has attributes related to this fields in drawing, but I don"t know why it doesn't work poperly.
