Macro. Align Views on a draft

Macro. Align Views on a draft

Macro. Align Views on a draft

(OP)
I am doing a macro for obtaining sections of an object and putting them in a sheet.
Now I can do the sections but I still don't understand how to fit them in the sheet.
For example.
3 sections in a sheet: macro do the sections, and moves them in these positions:
-----------------------------------
| ---- --------- ---- |
| | | | | | | |
| | | | | ---- |
| ---- | | |
| --------- |
-----------------------------------
I have the dimensions of the sections (not included the dimensions of the box, but they are different for different objects!) but I don't know which command I must use for move them in rows and columns.
I know there is the method (drawingView).x and (drawingView).y but they set the position of the CENTER of the section, so it is not so precise if I must align the sections in a row.
Furthermore, how can I know the dimensions of the section plus the box?!

Please, tell me at least if the question is clear, I am not english speaker (you don't say?!)

RE: Macro. Align Views on a draft

Hi,

Welcome to this forum.

See if this will help you to find the box dimensions of a sample view (named Front view), then, with a little math you can find the center of the box...

CODE --> CATScript

Language="VBSCRIPT"
Sub CATMain()
Set drawingDocument1 = CATIA.ActiveDocument
Set drawingSheets1 = drawingDocument1.Sheets
Set drawingSheet1 = drawingSheets1.Item("Sheet.1")
Set drawingViews1 = drawingSheet1.Views
Set drawingView1 = drawingViews1.Item("Front view")
Dim BoundingBox(3)
drawingView1.Size BoundingBox
msgbox BoundingBox(0) & " " & BoundingBox(1) & " " & BoundingBox(2) & " " & BoundingBox(3)
end sub

Regards
Fernando

https://picasaweb.google.com/102257836106335725208 - Romania
https://picasaweb.google.com/103462806772634246699... - EU

RE: Macro. Align Views on a draft

(OP)
Thank you for your welcome and for your help.
However, I did not understand how to program macro for catia for drafting ambient.
I began the record, I set the drafting, a casual front and a casual section.
This is the code:

"

CODE --> CATScript

Language="VBSCRIPT"


Sub CATMain()

Dim documents1 As Documents
Set documents1 = CATIA.Documents

Dim drawingDocument1 As Document
Set drawingDocument1 = documents1.Add("Drawing")

drawingDocument1.Standard = catISO

Dim drawingSheets1 As DrawingSheets
Set drawingSheets1 = drawingDocument1.Sheets

Dim drawingSheet1 As DrawingSheet
Set drawingSheet1 = drawingSheets1.Item("Foglio.1")

drawingSheet1.PaperSize = catPaperA0

drawingSheet1.Scale = 1.000000

drawingSheet1.Orientation = catPaperLandscape

Dim drawingViews1 As DrawingViews
Set drawingViews1 = drawingSheet1.Views

Dim drawingView1 As DrawingView
Set drawingView1 = drawingViews1.Add("AutomaticNaming")

Dim drawingViewGenerativeLinks1 As DrawingViewGenerativeLinks
Set drawingViewGenerativeLinks1 = drawingView1.GenerativeLinks

Dim drawingViewGenerativeBehavior1 As DrawingViewGenerativeBehavior
Set drawingViewGenerativeBehavior1 = drawingView1.GenerativeBehavior

Dim partDocument1 As Document
Set partDocument1 = documents1.Item("Part1.CATPart")

Dim product1 As CATBaseDispatch
Set product1 = partDocument1.GetItem("Part1")

drawingViewGenerativeBehavior1.Document = product1

drawingViewGenerativeBehavior1.DefineFrontView 0.809714, -0.465847, -0.356860, -0.586824, -0.642788, -0.492404

drawingView1.x = 594.500000

drawingView1.y = 420.500000

drawingView1.Scale = 1.000000

Set drawingViewGenerativeBehavior1 = drawingView1.GenerativeBehavior

drawingViewGenerativeBehavior1.Update

drawingView1.Activate

Set drawingDocument1 = CATIA.ActiveDocument

Set drawingSheets1 = drawingDocument1.Sheets

Set drawingSheet1 = drawingSheets1.ActiveSheet

Set drawingViews1 = drawingSheet1.Views

Set drawingView1 = drawingViews1.ActiveView

Set drawingViewGenerativeBehavior1 = drawingView1.GenerativeBehavior

Dim drawingView2 As DrawingView
Set drawingView2 = drawingViews1.Add("AutomaticNaming")

Dim drawingViewGenerativeBehavior2 As DrawingViewGenerativeBehavior
Set drawingViewGenerativeBehavior2 = drawingView2.GenerativeBehavior

drawingView2.x = 338.903315

drawingView2.y = 605.738502

Dim double1 As Double
double1 = drawingView1.Scale

drawingView2.Scale = 1.000000

Dim double2 As Double
double2 = drawingView1.Angle

drawingView2.Angle = 0.000000

Dim arrayOfVariantOfDouble1(3)
arrayOfVariantOfDouble1(0) = 46.166950
arrayOfVariantOfDouble1(1) = 63.702304
arrayOfVariantOfDouble1(2) = -68.664461
arrayOfVariantOfDouble1(3) = -94.744928
drawingViewGenerativeBehavior2.DefineSectionView arrayOfVariantOfDouble1, "SectionCut", "Offset", 0, drawingViewGenerativeBehavior1

Dim drawingViewGenerativeLinks2 As DrawingViewGenerativeLinks
Set drawingViewGenerativeLinks2 = drawingView2.GenerativeLinks

Set drawingViewGenerativeLinks1 = drawingView1.GenerativeLinks

drawingViewGenerativeLinks1.CopyLinksTo drawingViewGenerativeLinks2

Set drawingViewGenerativeBehavior2 = drawingView2.GenerativeBehavior

drawingViewGenerativeBehavior2.Update

drawingView2.ReferenceView = drawingView1

drawingView2.AlignedWithReferenceView

End Sub
"
In the macro that I built (this is not represented!), I have got an array in which there are the coordinates of the different sections (the arrayofdouble above).

I want to do something like:

For i = 0 To n (i=index of intersection, n=total of sections)
arrayOfVariantOfDouble(i) = ...
arrayOfVariantOfDouble(i+1) = ...
arrayOfVariantOfDouble(i+2) = ...
arrayOfVariantOfDouble(i+3) = ...
Next

And positioning the different sections along rows and columns.

I see a lot of code that I don't get, such as

CODE --> CATScript

Dim drawingViewGenerativeLinks2 As DrawingViewGenerativeLinks
Set drawingViewGenerativeLinks2 = drawingView2.GenerativeLinks

Set drawingViewGenerativeLinks1 = drawingView1.GenerativeLinks

drawingViewGenerativeLinks1.CopyLinksTo drawingViewGenerativeLinks2

Set drawingViewGenerativeBehavior2 = drawingView2.GenerativeBehavior

drawingViewGenerativeBehavior2.Update
Which part I must include in the loop, for avoiding a lot of redudant objects? (ex: drawingViewGenerativeBehavior2-3-4-5-6-7-...-n , one for section).

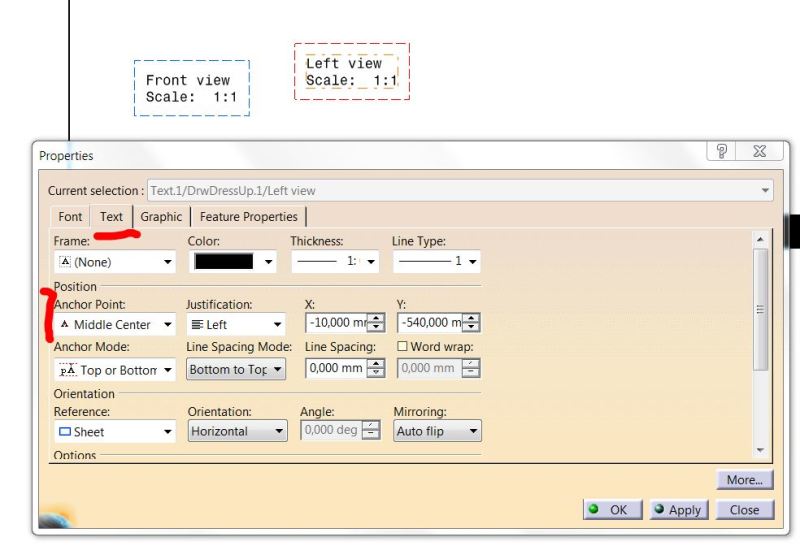

One last question: are you sure that (drawingView).x/y is a method that sets the position of the CENTER of the view? Because sometimes it seems it is not the center...

RE: Macro. Align Views on a draft

according to CHM file drawingView.x(/y) is used to position the origin of the view.

Eric N.
indocti discant et ament meminisse periti
