Roughness & waviness callout
Roughness & waviness callout
(OP)

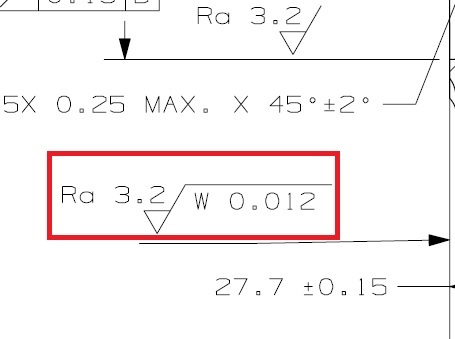

In the image attached you can see the following callout:
Ra 3.2 \/W 0.012
It is not entirely clear to me as to what is requested regarding waviness. I am familiar with parametric symbols Wa & Wt, though I have never seen just W.
Can anybody help me understand what this means?
Ra 3.2 \/W 0.012
It is not entirely clear to me as to what is requested regarding waviness. I am familiar with parametric symbols Wa & Wt, though I have never seen just W.
Can anybody help me understand what this means?





RE: Roughness & waviness callout
Try this...
https://www.google.pl/url?sa=t&rct=j&q=&am...
... and go to annex B, table B.2, example B.2.10.
