Sheet body in drafting

Sheet body in drafting

Sheet body in drafting

(OP)
I've created some sheet bodies in my model but they do not appear in my drawing. Is there a setting I can change so I can see the sheet bodies in the drawing?

Thank you,
Trent
NX 9.0.3.4

RE: Sheet body in drafting

Make sure that they've been properly added to the 'Model' Reference Set.

John R. Baker, P.E. (ret)
EX-Product 'Evangelist'
Irvine, CA
Siemens PLM:
UG/NX Museum:

The secret of life is not finding someone to live with
It's finding someone you can't live without

RE: Sheet body in drafting

(OP)
John,
How do I do that?
Thank you,

Thank you,
Trent
NX 9.0.3.4

RE: Sheet body in drafting


Switch to modeling in your 3D Item.

Got to;

Menu - Format - Reference sets

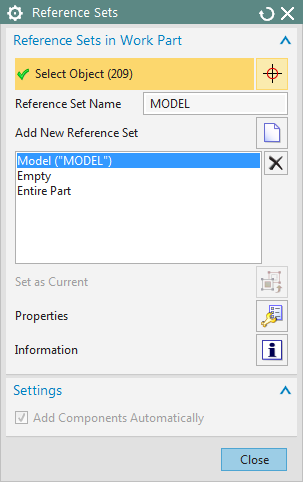

From the menu select the Model reference set (All geometry already in there will highlight) and select the sheets to be added.

Ronald van den Broek
Senior Application Engineer
Winterthur Gas & Diesel Ltd
NX9 / TC10.1.2

Building new PLM environment from Scratch using NX11 / TC11

RE: Sheet body in drafting

(OP)
The sheet bodies were already in there. So that wasn't it. Turns out, they were on a layer that wasn't visible in the drawing. I moved them to layer 1 and that fixed it.

Thank you,
Trent
NX 9.0.3.4
