Need help determining the tolerance

RE: Need help determining the tolerance

6Sigma,

My quick search of their drawing did not reveal a positional tolerance to go with their basic dimension. I suggest a thorough search of their drawing, followed by a phone call if necessary.

--
JHG

RE: Need help determining the tolerance

(OP)
so in lieu of a positional tolerance call out then the tolerances within the title block are the controlling values?

RE: Need help determining the tolerance

6_Sigma,

The box around the width dimension tells me there is a feature control frame on the drawing somewhere. Using a drawing note to control positional tolerances (unless otherwise specified) is perfectly valid. I didn't read through the notes.

The phone call should be to Amp, not to me. smile

--
JHG

RE: Need help determining the tolerance

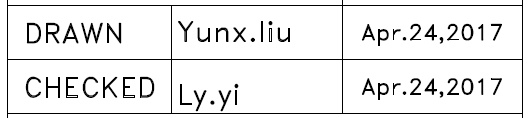

I think Yunx.liu and Ly.yi need to take a course in GD&T.

----------------------------------------

The Help for this program was created in Windows Help format, which depends on a feature that isn't included in this version of Windows.

RE: Need help determining the tolerance

(OP)
Who are Yunx.liu and Ly.yi?

RE: Need help determining the tolerance

----------------------------------------

The Help for this program was created in Windows Help format, which depends on a feature that isn't included in this version of Windows.

RE: Need help determining the tolerance

(OP)
LOL! That's what I was thinking when I submitted the initial question, I haven't worked with GDT in over a decade and am very rusty hence the need for alternative opinions.

Thanks all for support.

RE: Need help determining the tolerance

38.94 mm dim. has a tol. of +/-0.25mm as stated in the block. Nothing wrong here.

RE: Need help determining the tolerance

Since there is nothing relating the datums, they features they are based on can be up to 5 degrees from each other.

It would be nice if the tolerance text size wasn't smaller than the nominal values. Is that text somehow less important?

RE: Need help determining the tolerance

On the upper right corner of the drawing there is something that looks like mating part.
There are 2 holes 1.30 DIA, 38.94 mm apart, with general tolerance of +/-0.05.

Technically, this may be enough to calculate value for missing position tolerance.

And juergenwt, block tolerance applies "unless otherwise specified", and once you specify "basic", you DO specify otherwise.

"For every expert there is an equal and opposite expert"
Arthur C. Clarke Profiles of the future

RE: Need help determining the tolerance

Are any of the position FCF that they remembered to put on the drawing even valid?
