How to plot freq response function for a node?
2

How to plot freq response function for a node?

How to plot freq response function for a node?

(OP)
Hi,

I've run a steady state & dynamic frequency analysis & am now trying to get the frequency response functions (FRF) for particular nodes.

So far I have only been able to output accelerations & displacements for every node. As there close on 1/4 million nodes this isnt ideal.

What am I missing here?

RE: How to plot freq response function for a node?

What exactly do you mean with "frequency response functions (FRF) for particular nodes"? It it the frequency of his movement?

RE: How to plot freq response function for a node?

(OP)
Range of nodal displacements at certain frequencies.

RE: How to plot freq response function for a node?

Sounds to me like a xy-plot of the displacement magnitude vs. frequency for such a node.

RE: How to plot freq response function for a node?

(OP)

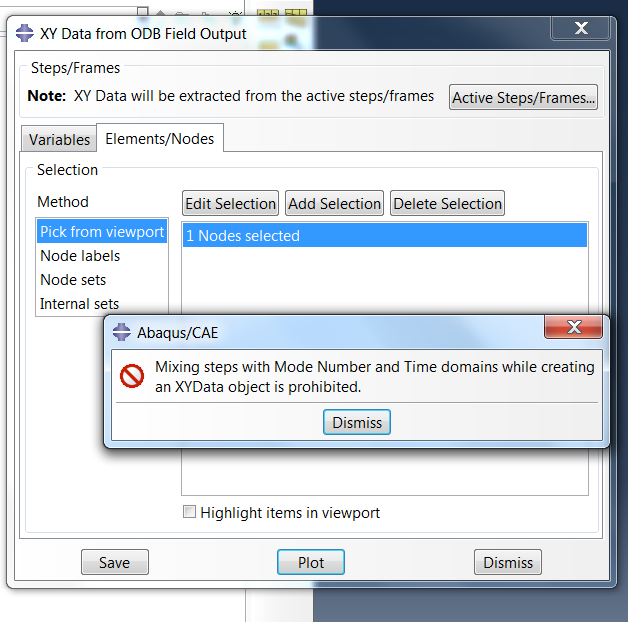

That's what I thought but whenever I try to create XY Data I get the following....


RE: How to plot freq response function for a node?

2
I assume you have other steps in the analysis, that act in the time domain. Use the upper right button in that dialog (or Results -> Active Steps/Frames) to deactivate such steps before.

Also think about complex results. Maybe you also have to switch the settings before. See Results -> Options -> Complex Form

RE: How to plot freq response function for a node?

(OP)
Phew thanks that was driving crazy
