why product rotate in Catia assembly when use contact constraint?

why product rotate in Catia assembly when use contact constraint?

why product rotate in Catia assembly when use contact constraint?

(OP)
Hi
ia have a problem when i set contact constraint on two surface those surface contact But one of them rotate 180deg
how can i choose to rotate piece or not when using contact constraint?
here two picture of my problem
http://files.engineering.com/getfile.aspx?folder=4...
http://files.engineering.com/getfile.aspx?folder=f...

thanks

RE: why product rotate in Catia assembly when use contact constraint?

You need to define an angular constraint between the two parts. Something like a Parallel between centerplanes.

RE: why product rotate in Catia assembly when use contact constraint?

solid face are oriented outside the solid, by selecting the 2 planar face catia also match opposite direction.

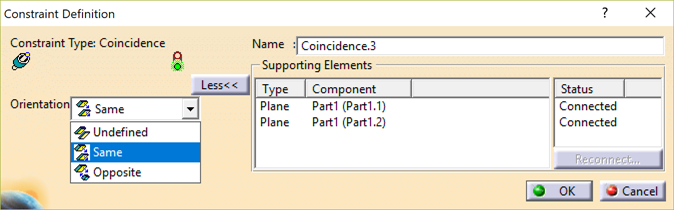

for what you want you should use coincidence with same direction

Eric N.
indocti discant et ament meminisse periti
